E-Spartan
E-Spartan Deore 12S New
Unavailable
E-BEAST
Devinci’s e-Spartan salutes those about to rock with the kind of slack, aggressive roll you’d expect from the spawn of Spartan—and with the extra oomph of an e-equipped engine. Tame turbulent descents thanks to a generous 170mm of rear travel meets 180mm of finesse in the fork. And then turn around and hit turbo on the uphill. The Shimano EP8 engine boosts you to speeds of up to 32 km/h (limited to 25 km/h in Europe). Increase your range with the powerful 725Wh battery safely located in the downtube. Crank the volume and cue the bangers. The E-Spartan is an e-beast that shreds.
Technical
Specifications
E-Spartan Deore 12S
Manufacturing
Designed & Assembled in Canada
Frame
- FRAME Aluminum Optimum G04 170mm
- HEADSET FSA SX Pro | 1.5
- SEAT CLAMP Alloy CNC | 38.6mm
Suspension
- SUSPENSION FORK Fox 38 Performance E-Bike Grip 180 | 44 Offset
- REAR SHOCK Fox DHX2 Performance Elite | 230x65
Cockpit
- HANDLEBAR V2 Pro | B:35mm | R:25mm | W:780mm
- STEM V2 Pro | B:35mm | L:40mm | 0°
- SADDLE SDG BELAIR Max eMTB
- SEATPOST TranzX | 34.9mm | 1x Lever
- GRIPS Devinci Performance | w/lock-on
Brakes
- FRONT BRAKE Shimano XT M8120/M8100 | 4 Pistons
- REAR BRAKE Shimano XT M8120/M8100 | 4 Pistons
- ROTORS Shimano RT66 | 203mm
Drivetrain
- REAR DERAILLEUR Shimano Deore M6100 | 12s
- REAR SHIFTER Shimano Deore M6100 | 12s
- CRANKARM Shimano STEPS EM600
- CHAINRING Shimano SM-CRE80 34T
- CASSETTE Shimano M6100 | 12s | 10-51T | Microspline
- CHAIN Shimano Deore M6100 | 12s
- CHAIN GUIDE E*thirteen E*Spec PLus | ISCG05
Wheels
- FRONT RIM V2 Comp | 29mm inner | TR
- FRONT HUB Formula DC-711 | Sealed | 6bolts | TA 15x110mm
- REAR RIM V2 Comp | 29mm inner | TR
- REAR HUB Formula EHL-148 | Sealed | 6bolts |TA 12x148mm | Microspline
- SPOKES Sapim Stainless 14G w/Nylok
- FRONT TIRE Maxxis Minion DHF | 29x2.5wt | 3C MaxxTerra Exo+ TR
- REAR TIRE Maxxis Minion DHRII | 29x2.4wt | 3C MaxxGrip DoubleDown TR
E-System
- COMPUTER Shimano STEPS EM800
- DRIVE UNIT Shimano STEPS EP800 | 250W | 85Nm
- BATTERY BMZ 725WH
Weight
25.00 kg / 55.12 lb
*For a size medium complete bike, weight approximate and subject to change.
Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.

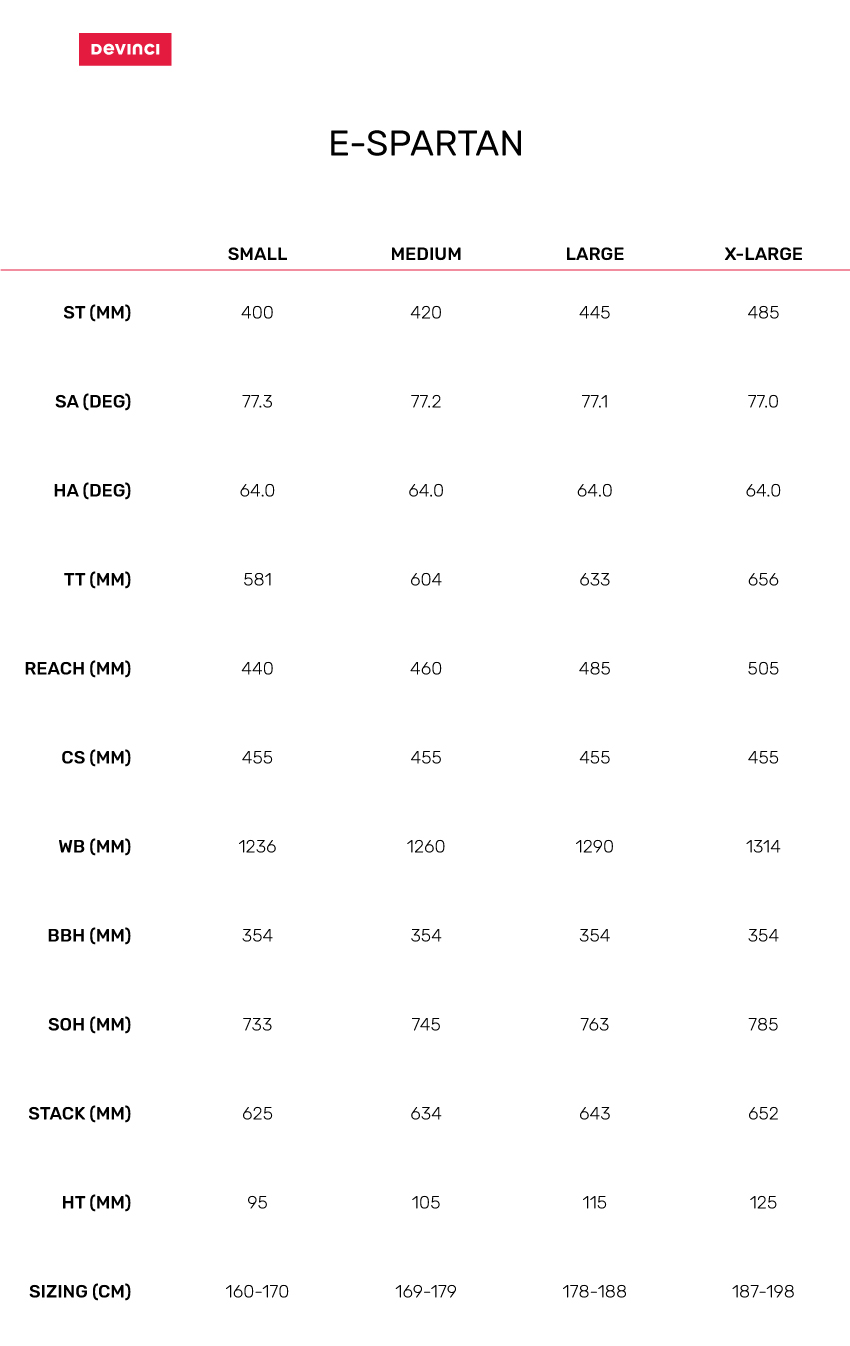

Frame &
Geometry
*THE PERFECT FIT Please note that only Devinci authorized retailers are able to advise you properly on the correct bike size. Please visit your nearest store so they can analyze your needs. In the case of internet shopping, it is equally important to provide the necessary measurements (e.g. inseam length) so that the retailer can give you the correct information.
Full range
1 bikes
Technologies
Aluminum 6061-T6 frame
Frame built from 6061-T6 tubesets for superior durability, incredible stiffness, and a knockout strength-to-weight ratio.
Asymmetric construction
Milking the most performance out of every frame angle for improved torsional stiffness.
Updated Geometry
Modern trail bike geometry featuring a longer reach and a slacker head angle for confidently tackling technical sections, while steeper seat tube angle helps you motor up the climbs.
New shock layout
Improves clearance for the shock, bottle and motor, while an e-bike specific shock tune optimizes suspension kinematics.
Maximum tire clearance
29 x 2.6
E-MTB optimized Split Pivot
Separates acceleration forces from braking forces for a buttery smooth ride complemented by hyperactive small-bump compliance. Additionally, optimized kinematics keeps the e-bike suspension active, even when accelerating, for added torque and improved overall traction.
Molded chainstay protector
Reinforced chainstay protectors enhance durability for the rugged ride ahead.
Motor
Take on steep climbs and tough trails in full confidence with 85Nm increased maximum torque. EP8 delivers smooth, direct power to ensure you’re always in complete control while experiencing a natural ride feeling.
Switch Unit
Switch between Boost, Trail, Eco and Walk settings in a flash.
New 725Wh Battery
Ultra long-lasting and powerful 725Wh battery uses the latest 21700 cell technology that holds 30% more energy. Designed for the rigours of mountain biking with a supported range up to 135km on one charge.
Dropout speed sensor
Clean, streamlined solution to clunky, outdated spoke magnets, with internalized cable routing for less rattle.
Charging port on seat tube
Recharge easily using the seat tube charging port
or remove the battery to charge separately.
4A Supercharger
High output charger delivers 80% charge in roughly 2 hours.
In-tube battery
This lightweight solution keeps the battery safely tucked inside the downtube away from rocks and debris.
Enduro™ bearings
Enduro™ double-lip sealed bearings for precision movement and superior longevity.
Universal derailleur Hanger
Reduces the risk of destroying your derailleur and makes it easy to source replacements when you need them.
Lifetime warranty
Riding passions last a lifetime. Now your bike does too.
Standard Boost 148
Frames designed around Boost 148 offer ample tire clearance so you can take advantage of improved wheel stiffness.
Chain guide equipped
Ultra-tough, lightweight e*thirteen chain guide for headache-free chain-holding security.
34.9 seat post
S:125 M:150 L:175 XL:200
Insertion length:
S: 225mm
M: 250mm
L: 275mm
XL: 300mm
Frame/motor protection
Integrated high-density chain stay protector deliver a silent ride and peace of mind while the nylon motor-protector keeps out
rocks and debris.
Recycle your Battery with Devinci and Call2Recycle
Devinci is proud to support this first-of-kind initiative to ensure e-bike batteries are safely handled and stay out of our landfills. Learn more.
