EP
EP Deore 12S Made in Canada
US$5,999.00
E-TRAIL
EP brings responsive handling and a wickedly fun feel to the rolling, rugged terrain it’s hardwired to explore. Rip quick, technical trails with a modern geometry that combines steep seat angles for climbing with slacker head angles for confidence inspiring cornering and control. And when it’s time to flip the switch into ebike assist, EP makes climbing fast and effortlessly fun thanks to its efficient, powerful Shimano e-engine that integrates seamlessly into the frame. EP features a Canadian made 6066-T6 Aluminum frame, 130mm trail-taming rear travel, and molded frame, motor, and battery protection. Whether it’s woodsy laps with friends or a week of trail time with the family, this lively bike lives for it.
Technical
Specifications
EP Deore 12S
Manufacturing
Handcrafted in Canada
Frame
- FRAME Aluminum Optimum G04 130mm
- HEADSET FSA Orbit | 1.5 | Zero Stack
- SEAT CLAMP Alloy CNC | 34.9mm
Suspension
- SUSPENSION FORK RockShox 35 Silver TK Solo Air 140 | 0T | 44 Offset
- REAR SHOCK Rockshox Deluxe Select R Debonair Trunnion | 185x47.5
Cockpit
- HANDLEBAR V2 Pro | B:35mm | R:15mm | W:780mm
- STEM V2 Pro | B:35mm | L:50mm | 0°
- SADDLE SDG BELAIR 3.0
- SEATPOST TranzX Dropper | 31.6mm | 1x Lever
- GRIPS Devinci Performance | w/lock-on
Brakes
- FRONT BRAKE Magura MT30 | 4 Pistons
- REAR BRAKE Magura MT30 | 4 Pistons
- ROTORS Shimano RT66 | 203mm
Drivetrain
- REAR DERAILLEUR Shimano Deore M6100 | 12s
- REAR SHIFTER Shimano Deore M6100 | 12s
- CRANKARM Shimano STEPS E8000
- CHAINRING Shimano STEPS CRE70 | 36T
- CASSETTE Sunrace 12s | 11-51T
- CHAIN Shimano Deore M6100 | 12s
- CHAIN GUIDE E*thirteen TRS | ISCG05
Wheels
- FRONT RIM V2 Comp | 36mm inner | TR
- FRONT HUB Formula DC-711 | Sealed | 6bolts | TA 15x110mm
- REAR HUB Formula EHL-148 | Sealed | 6bolts |TA 12x148mm | HG
- SPOKES Sapim Stainless 14G w/Nylok
- FRONT TIRE Maxxis Minion DHF | 29x2.6wt | 3C MaxxTerra Exo+ TR
- REAR TIRE Maxxis Minion DHRII | 29x2.6WT | 3C MaxxTerra Exo+ TR
E-System
- COMPUTER Shimano STEPS E7000
- DRIVE UNIT Shimano STEPS E7000 | 250W | 60Nm
- BATTERY Shimano STEPS E8035 | 504Wh | Lithium-ion
Weight
24.33 kg / 53.64 lb
*For a size medium complete bike, weight approximate and subject to change.
Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.
Frame &
Geometry
*THE PERFECT FIT Please note that only Devinci authorized retailers are able to advise you properly on the correct bike size. Please visit your nearest store so they can analyze your needs. In the case of internet shopping, it is equally important to provide the necessary measurements (e.g. inseam length) so that the retailer can give you the correct information.
Full range
1 bikes
Technologies
Aluminum 6066-T6 frame
Made in Canada. Frame built from 6066-T6 tubesets for superior durability, incredible stiffness, and a knockout strength-to-weight ratio exclusive to Devinci bikes.

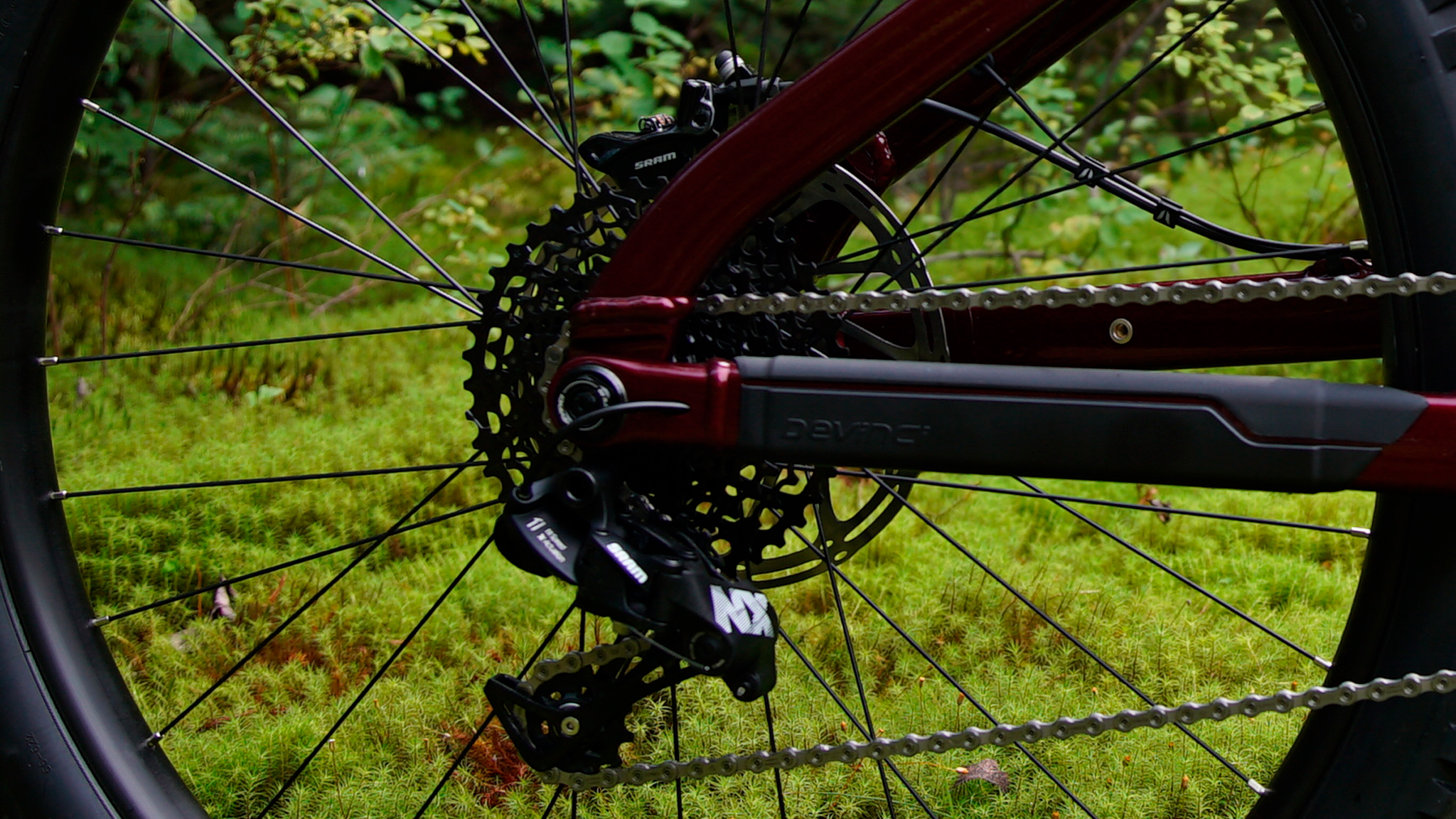

Standard Boost 148
Frames designed around Boost 148 offer ample tire clearance so you can take advantage of improved wheel stiffness.

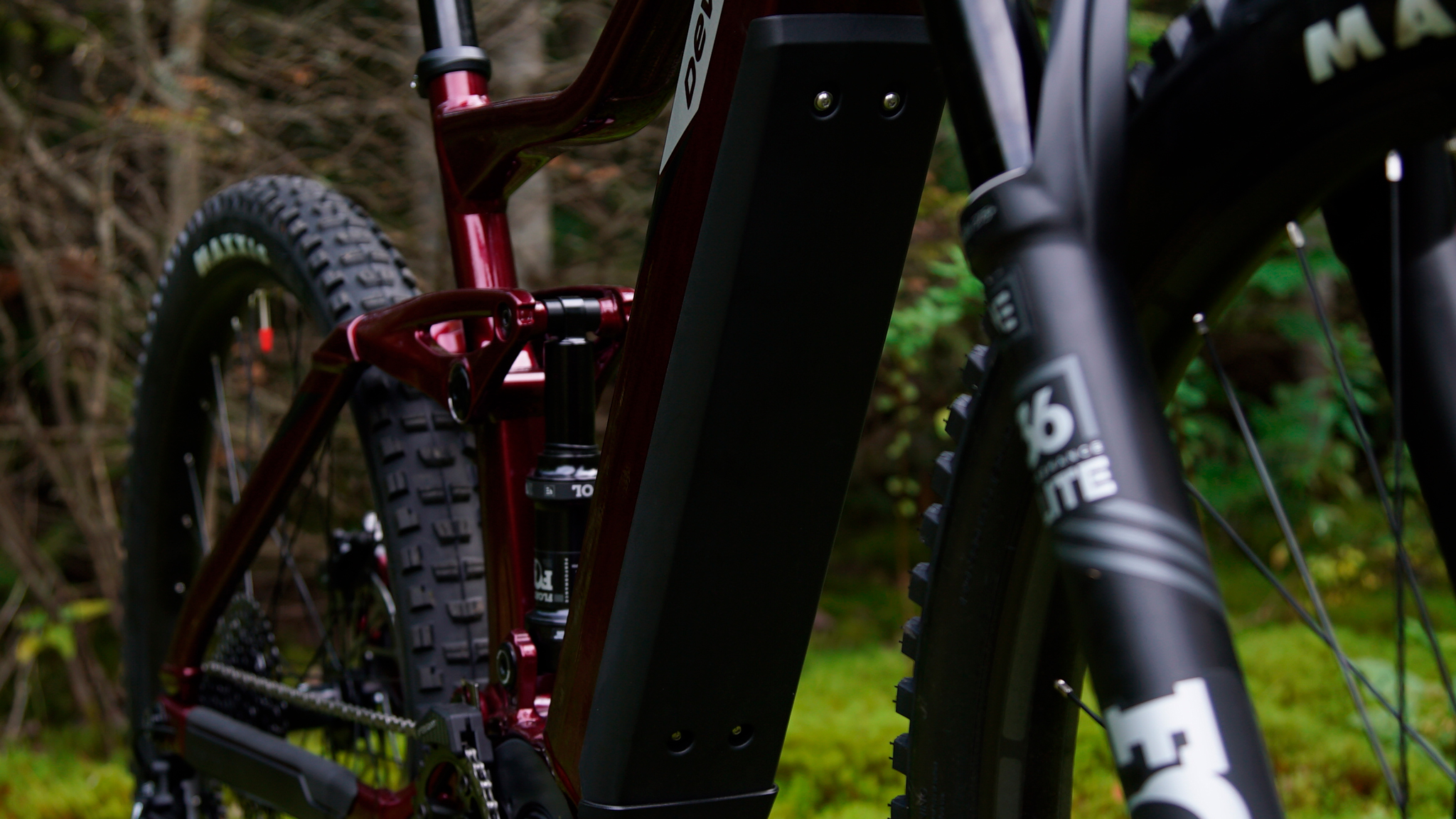

Frame protection
1) Molded polyurethane on chainstay upper / lower valiantly blocks, deflects and defends.
2) Fiber-reinforced Nylon battery protector shields your power source from wear and tear.
3) Cast-alloy motor features a flexible Nylon protector that fights rocks and loose debris.
FRG adjustable
FRG adjustable technology allows you to customize your ride to personal preference or specific trail type using a flip-flop pivot mechanism that changes the bike's geometry to either a low or high position. FRG bikes are quick and aggressive at lower speeds, with added stability at high speeds. Combined with a super low stand-over-height, these agile, FRG bikes deliver precise handling and power transfer that reacts immediately and intuitively to rider input.
eMTB optimized Split Pivot
Separates acceleration forces from braking forces for a buttery smooth ride complemented by hyperactive small-bump compliance. Additionally, optimized kinematics keeps the ebike suspension active, even when accelerating, for added torque and improved overall traction.
Revamped shock tune
Heightened small bump sensitivity and a progressive feel, plus the ability to run lower pressure while maintaining optimal bottom resistance.

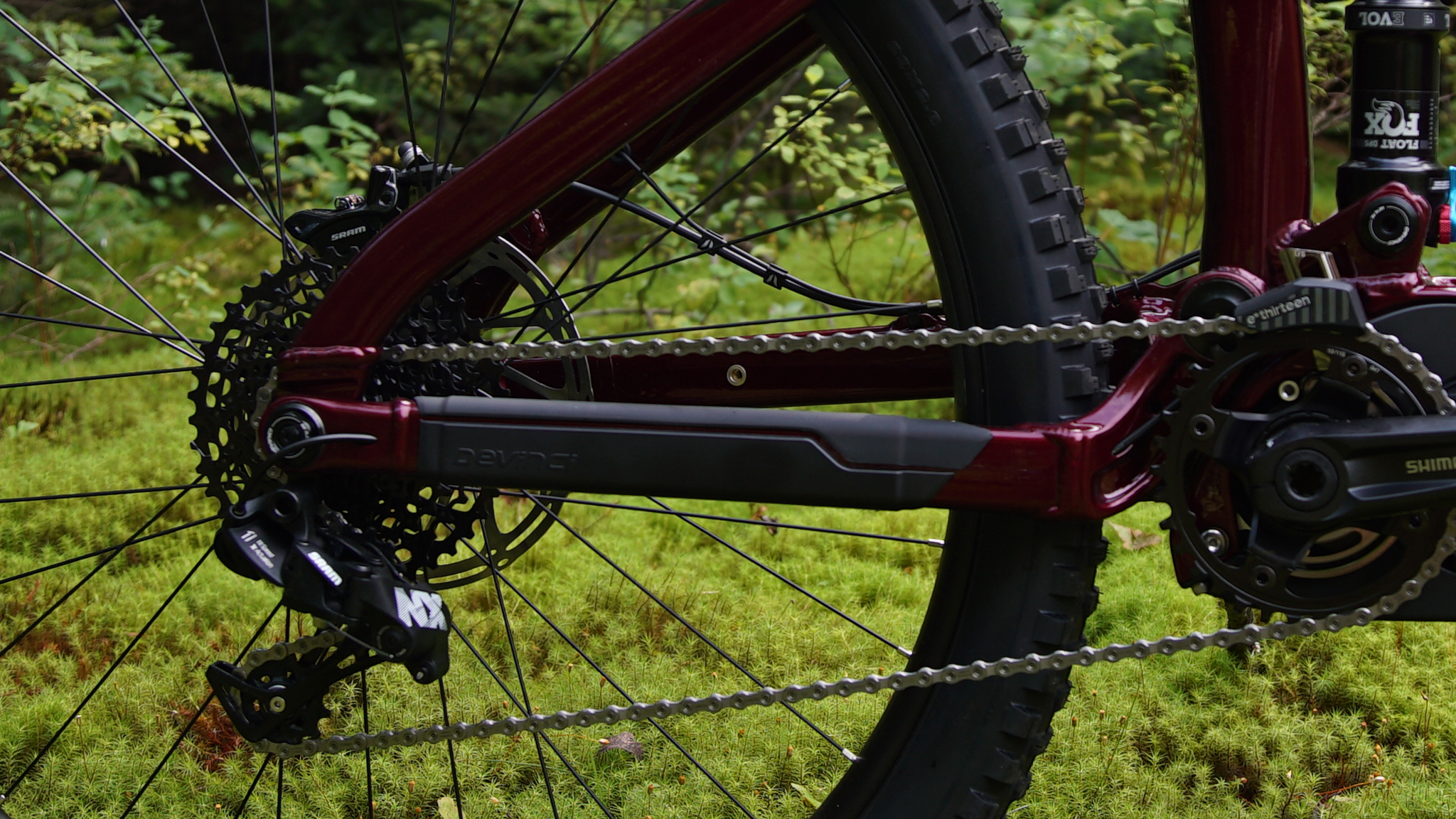

Molded chainstay protector
Reinforced chainstay protectors enhance durability for the rugged ride ahead.

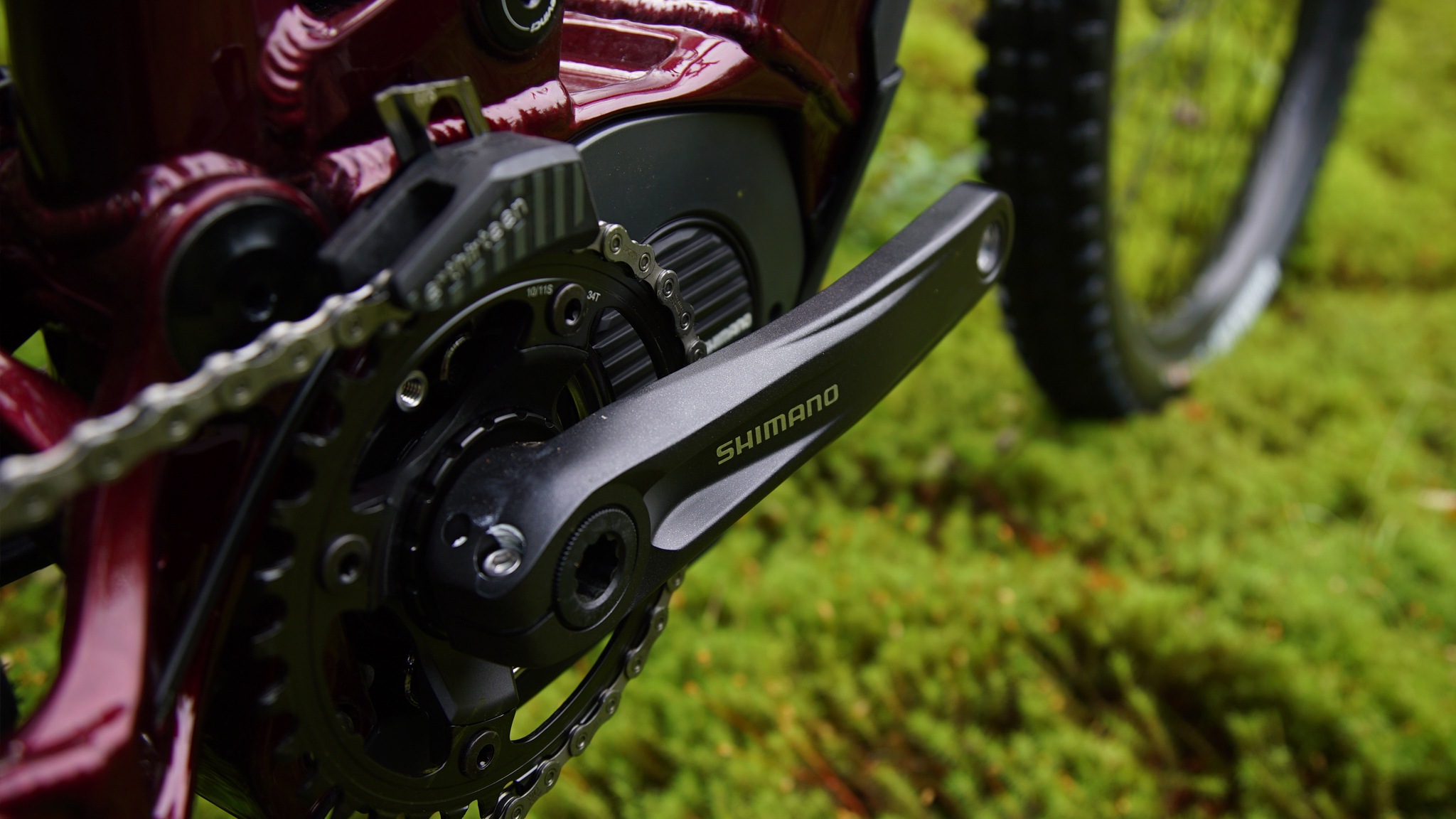

Motor
Take on steep climbs and tough trails in full confidence with 60Nm increased maximum torque. E7000 delivers smooth, direct power to ensure you’re always in complete control while experiencing a natural ride feeling.
Switch unit (shifter)
Switch between Boost, Trail, Eco and Walk settings in a flash.
Battery
Ultra-durable, powerful battery designed for the rigors of mountain biking. Supported travel up to 100km on one charge.

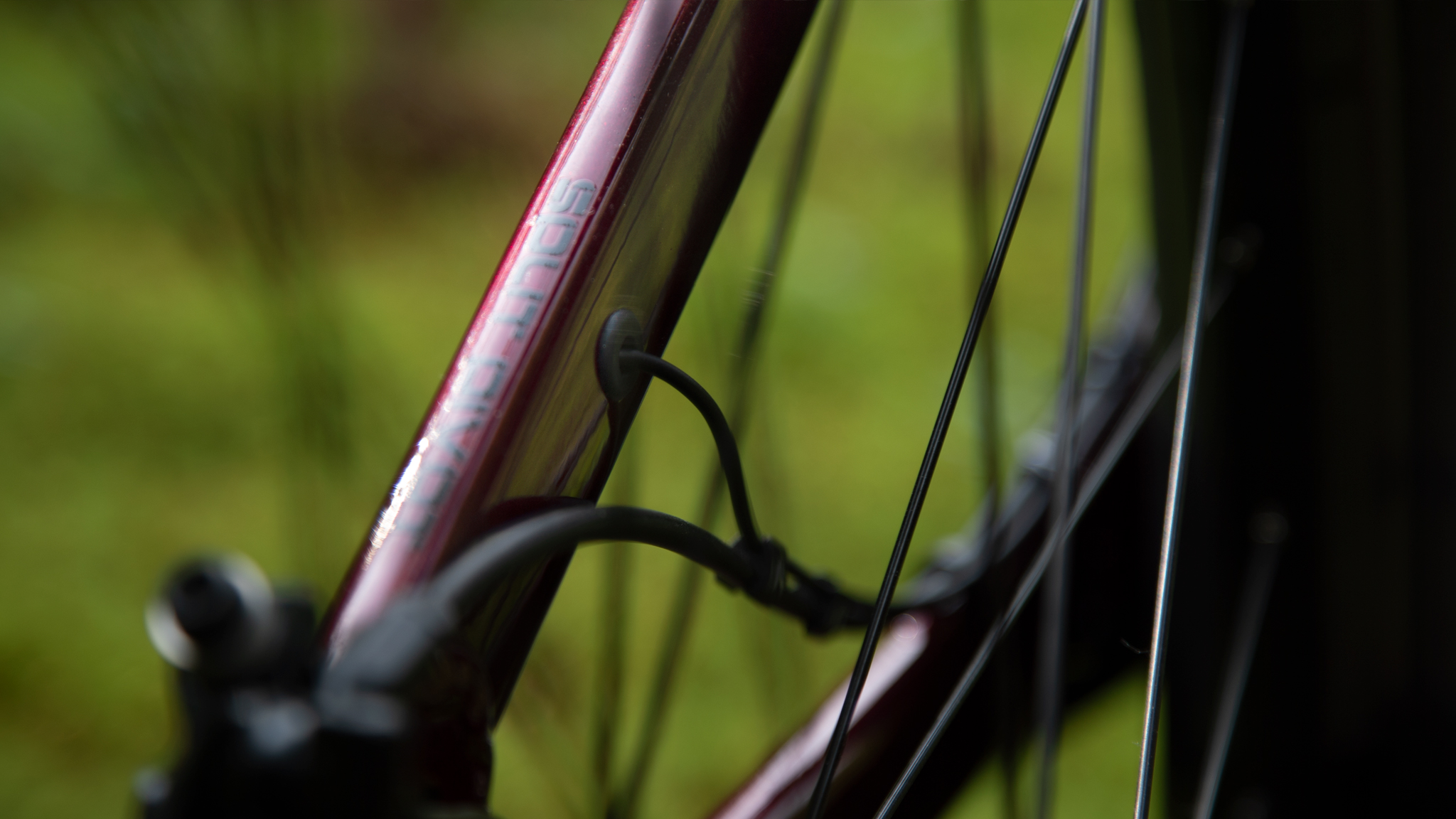

Dropout speed sensor
Clean, streamlined solution to clunky, outdated spoke magnets, with internalized cable routing for less rattle.

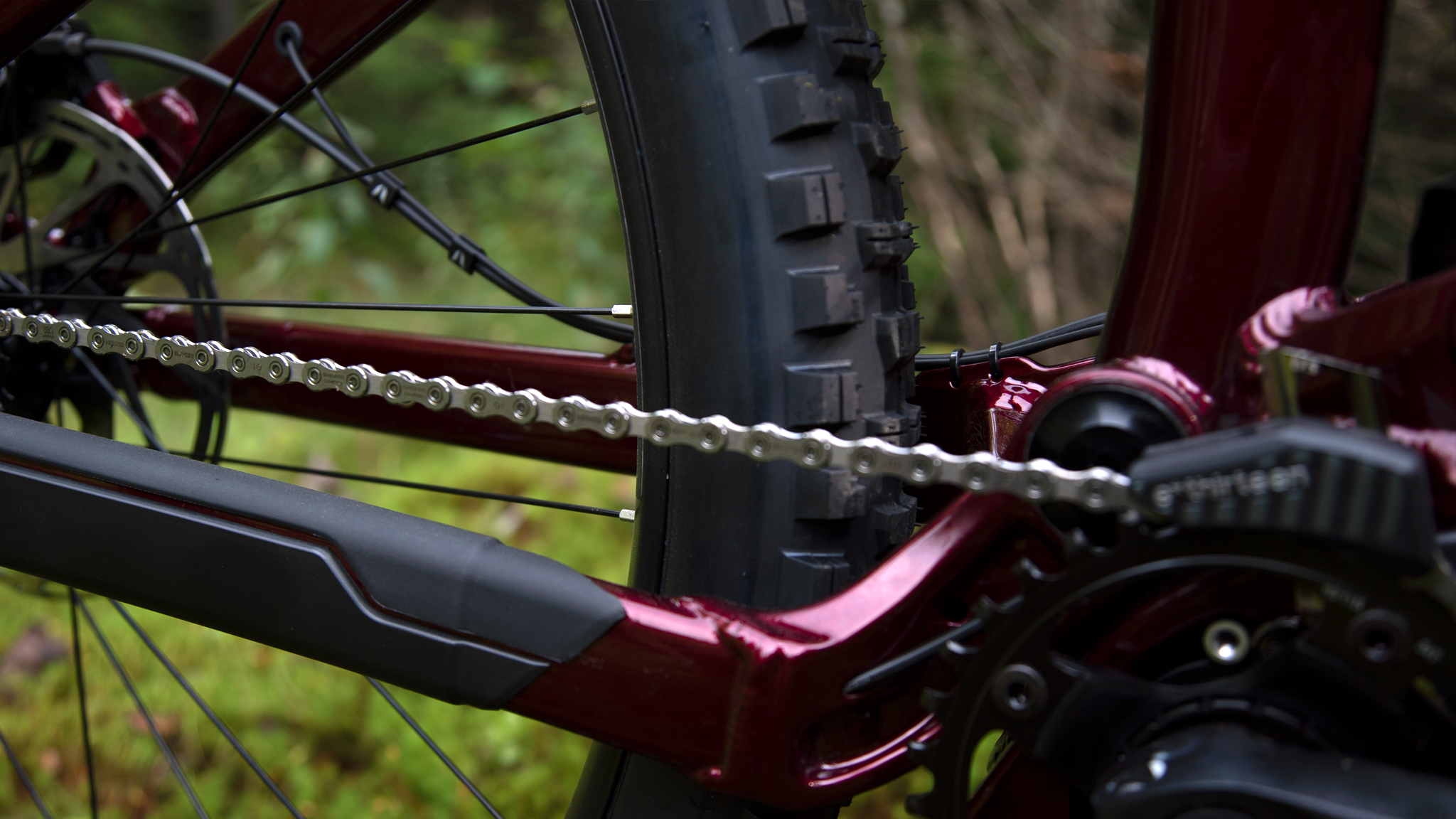

Asymectric construction
Milking the most performance out of every frame angle for improved torsional stiffness.
Updated Geometry
Modern trail bike geometry featuring a 10mm longer reach and degree slacker head angle for confidently tackling technical sections, while steeper seat tube angle helps you motor up the climbs.
Dropper post compatibility
AC: S:100 M:125 L:150 XL:170
EP/DC 29 : S:125 M:150 L:170 XL:170

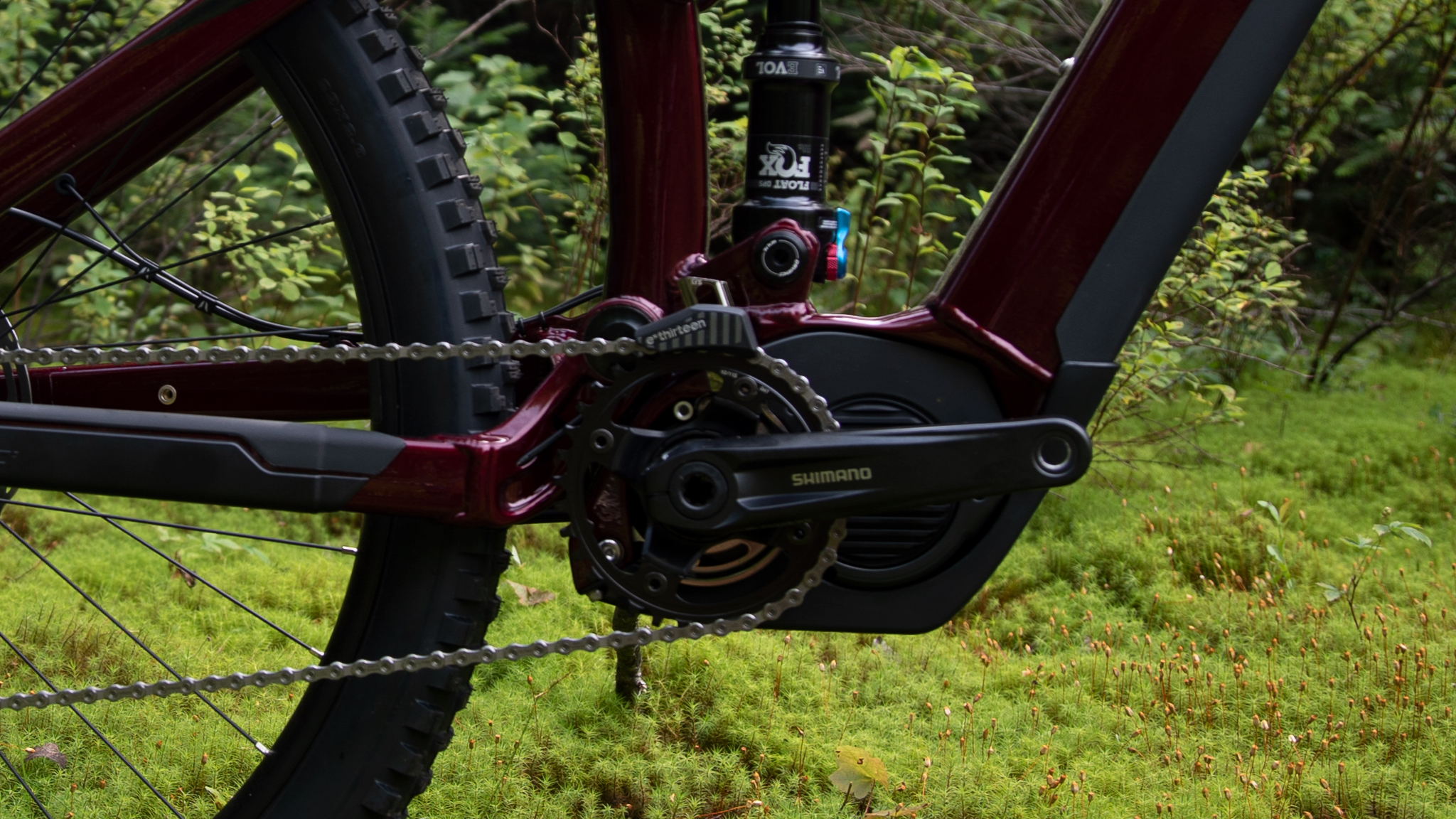

Chainguide equiped
Ultra-tough, lightweight e*thirteen chainguide for headache-free chain-holding security.
Lifetime warranty
Riding passions last a lifetime. Now your bike does too.
