E-Griffin

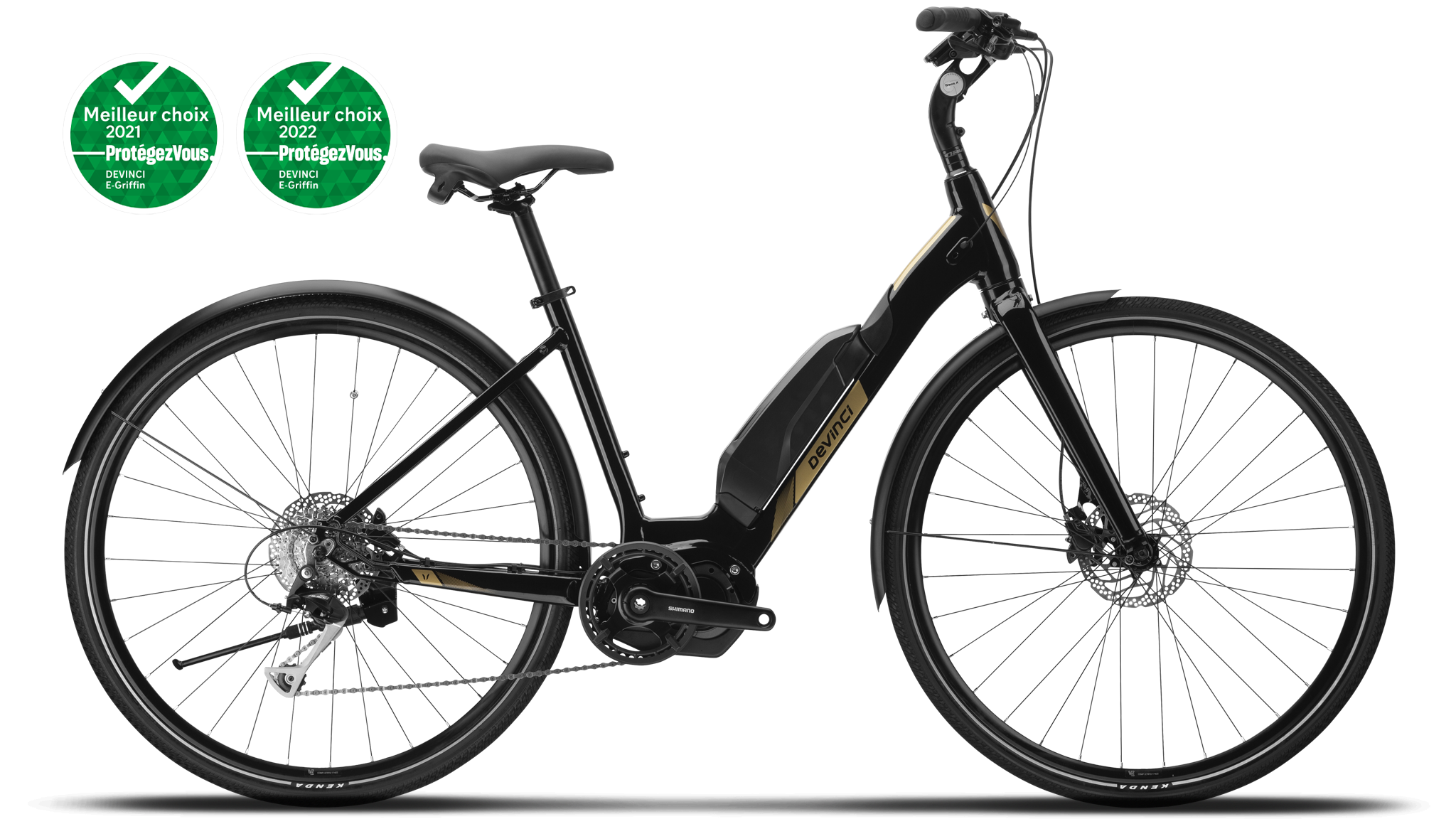

E-Griffin E6100 9S

Unavailable

  • Shimano E6100 250W motor
  • Shimano E8014 418WH Lithium-ion Battery
Compare + Added! Delete

Select your specs

Technical
Specifications

E-Griffin E6100 9S

Compare + Added! Delete

Manufacturing

Designed & Assembled in Canada

Download the manual

Frame

  • FRAME Aluminum Optimum S03
  • FORK Aluminum Optimum S03
  • HEADSET FSA Orbit | 1.5 | Zero Stack
  • SEAT CLAMP Alloy CNC | Quick Release | 34.9mm

Cockpit

  • HANDLEBAR Alloy City | B:25.4mm | R:30mm | W:640mm
  • STEM Tranz-X Ajustable | B:25.4mm | L:110mm | 0-60°
  • SADDLE Devinci
  • SEATPOST V2 Comp | 30.9mm
  • GRIPS Velo Ergo Comfort

Brakes

  • FRONT BRAKE Shimano MT201/MT200 | 2 Pistons
  • REAR BRAKE Shimano MT201/MT200 | 2 Pistons
  • ROTORS Shimano RT30 | Centerlock | 160mm

Drivetrain

  • REAR DERAILLEUR Shimano Alivio T4000 | 9s
  • REAR SHIFTER Shimano Alivio M3100 | 9s
  • CRANKARM Shimano STEPS E6100
  • CHAINRING Shimano STEPS SM-CRE61 | 38T
  • CASSETTE Shimano HG400 | 9s | 11-32T | SH
  • CHAIN Shimano E6070 | 9s

Wheels

  • FRONT RIM V2 Comp | 17mm inner
  • FRONT HUB Formula CL-25 | Sealed | Centerlock | QR 9x100mm
  • REAR RIM V2 Comp | 17mm inner
  • REAR HUB Formula CL-2611 | Sealed | Centerlock | QR 10x135mm | SH
  • SPOKES Sapim Stainless 14G w/Nylok
  • TIRES Kenda Kwick Trax | 700x38c

E-System

  • COMPUTER Shimano STEPS E6100
  • DRIVE UNIT Shimano STEPS E6100 | 250W | 60Nm
  • BATTERY Shimano STEPS E8014 | 418Wh | Lithium-ion

Accessories

  • PEDALS Wellgo M085
  • FRONT FENDER Sunny Wheel
  • REAR FENDER Sunny Wheel
  • KICKSTAND Kickstand Devinci Black

Weight

19.37 kg / 42.70 lb
*For a size medium complete bike, weight approximate and subject to change.
Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.

Frame &
Geometry

*THE PERFECT FIT Please note that only Devinci authorized retailers are able to advise you properly on the correct bike size. Please visit your nearest store so they can analyze your needs. In the case of internet shopping, it is equally important to provide the necessary measurements (e.g. inseam length) so that the retailer can give you the correct information.

A - ST (MM)
B - SA (DEG)
C - HA (DEG)
D - TT (MM)
E - REACH (MM)
F - CS (MM)
G - WB (MM)
H - BBH (MM)
I - SOH (MM)
J - STACK (MM)
K - HT (MM)
RIDER HEIGHT (CM)

Full range

1 bikes

Selected bike

E-Griffin E6100 9S

Unavailable

  • Shimano E6100 250W motor
  • Shimano E8014 418WH Lithium-ion Battery
Compare + Added! Delete
