Django
Django Carbon XT 12S LTD
Unavailable
Select your specs
-
Carbon
Frame
-
XT 12S LTD
Build kit
TRAIL
Light, lively Split-Pivot Django brings unstoppable stoke to a tangle of trail types. This capable short-travel machine shines on climbs, while bringing adept handling to gnarled, technical turf. Superboost 157 rear spacing combined with 29x2.6 tire clearance accentuate its punchy, aggressive powers on rolling terrain. Relocated adjustable geo flip chips mean less moving parts and simple on-the-fly adjustability. And threaded BBs make for easy maintenance, while molded chainstay and downtube protection helps buck rocks and loose debris. Jump on the fun-hogging Django 29 today and find your happy place — everywhere you ride.
Technical
Specifications
Django Carbon XT 12S LTD
Manufacturing
Designed & Assembled in Canada
Frame
- FRAME Carbon DMC-G 120mm
- HEADSET FSA Orbit | 1.5 | Zero Stack
- SEAT CLAMP Alloy CNC | 37mm
Suspension
- SUSPENSION FORK Fox 36 Performance Elite Grip2 140 | 44 Offset
- REAR SHOCK Fox Float DPS Performance Elite | 0.8VSpacer | 190x45
Cockpit
- HANDLEBAR RaceFace Next R35 | B:35mm | R:20mm | W:800mm
- STEM RaceFace Turbine R35 | B:35mm | L:50mm | 0°
- SADDLE SDG BELAIR 3.0
- SEATPOST SDG Tellis 31.6mm
- SEATPOST LEVER SDG Tellis | Matchmaker | 1x Lever
- GRIPS Devinci Performance | w/lock-on
Brakes
- FRONT BRAKE Shimano XT M8120/M8100 | 4 Pistons
- REAR BRAKE Shimano XT M8120/M8100 | 4 Pistons
- ROTORS Shimano RT76 | 203mm
Drivetrain
- REAR DERAILLEUR Shimano XT M8100 | 12s
- REAR SHIFTER Shimano XT M8100 | 12s | I-spec EV
- CRANKSET Shimano XT M8130-1 | 32T | SuperBoost 157
- BOTTOM BRACKET Shimano MT801 | BSA | 68/73mm
- CASSETTE Shimano XT M8100 | 12s | 10-51T | Microspline
- CHAIN Shimano M7100 | 12s
Wheels
- FRONT RIM RaceFace ARC30 | 30mm inner | TR
- FRONT HUB RaceFace Vault | 6bolts | TA 15x110mm
- REAR RIM RaceFace ARC30 | 30mm inner | TR
- REAR HUB RaceFace Vault | 6bolts | TA 12x157mm | Microspline
- SPOKES Sapim Stainless 14G w/Nylok
- FRONT TIRE Maxxis Minion DHF | 29x2.5wt | 3C MaxxTerra Exo+ TR
- REAR TIRE Maxxis Minion DHRII | 29x2.4wt | 3C MaxxTerra Exo+ TR
Weight
14.30 kg / 31.53 lb
*For a size medium complete bike, weight approximate and subject to change.
Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.

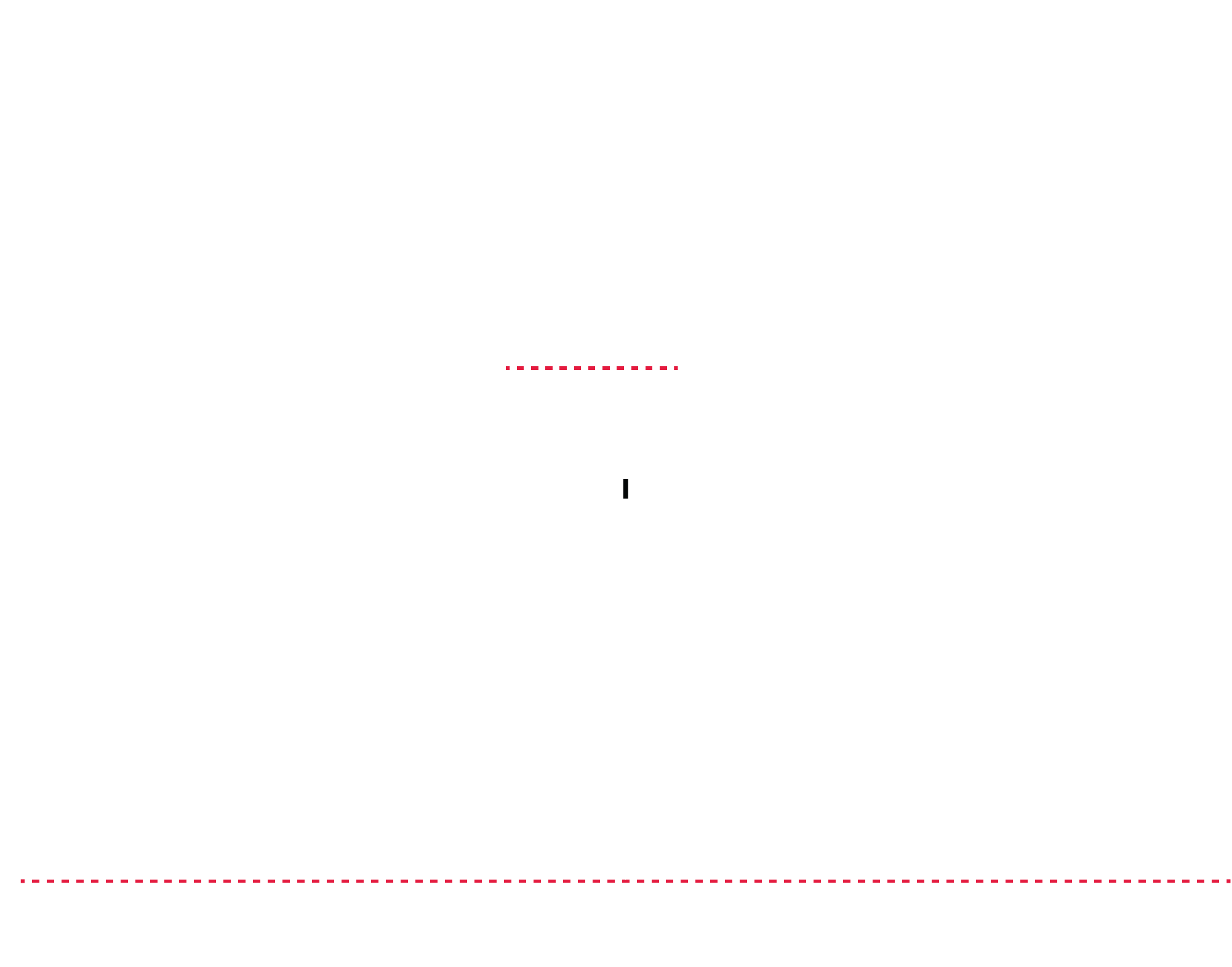

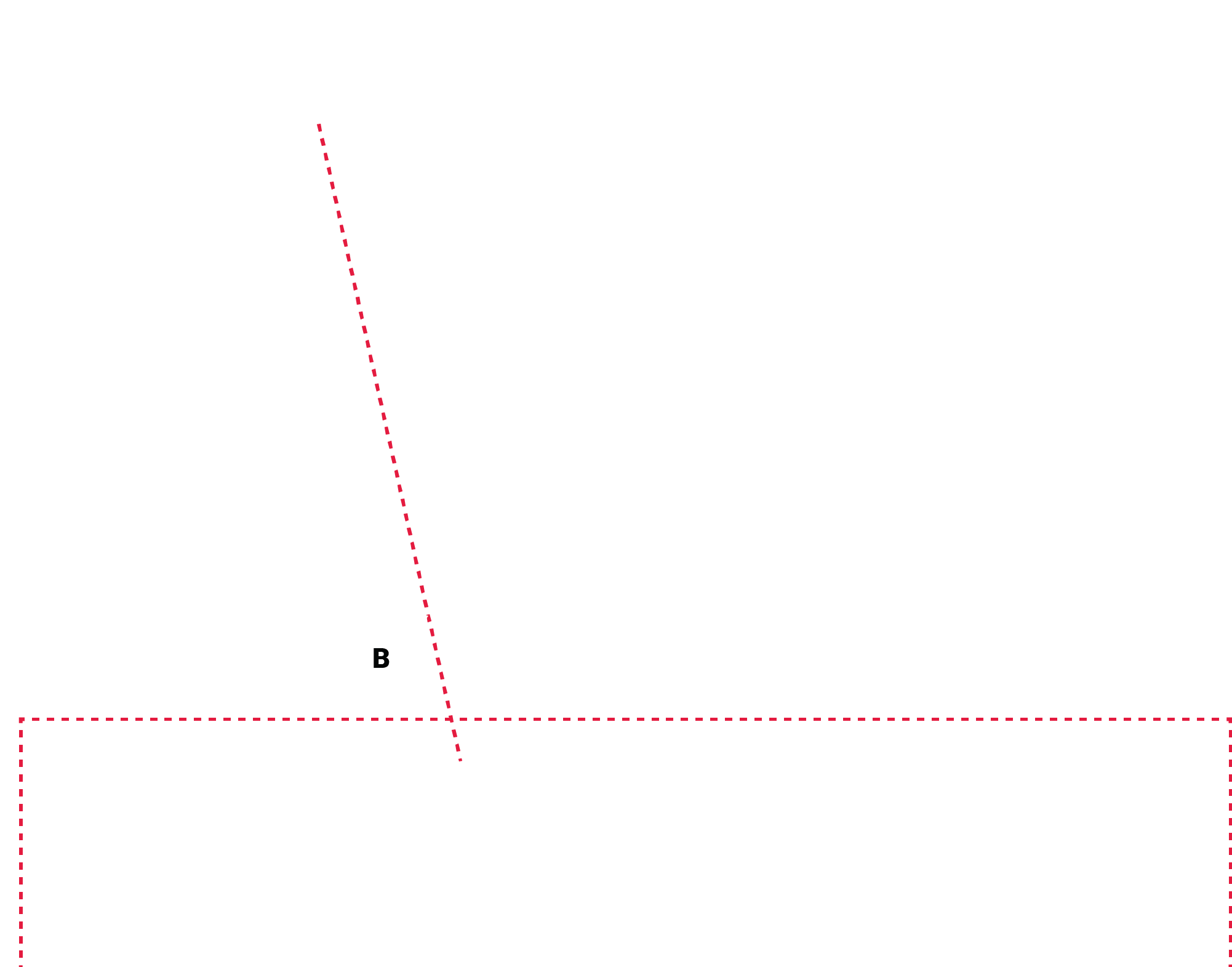

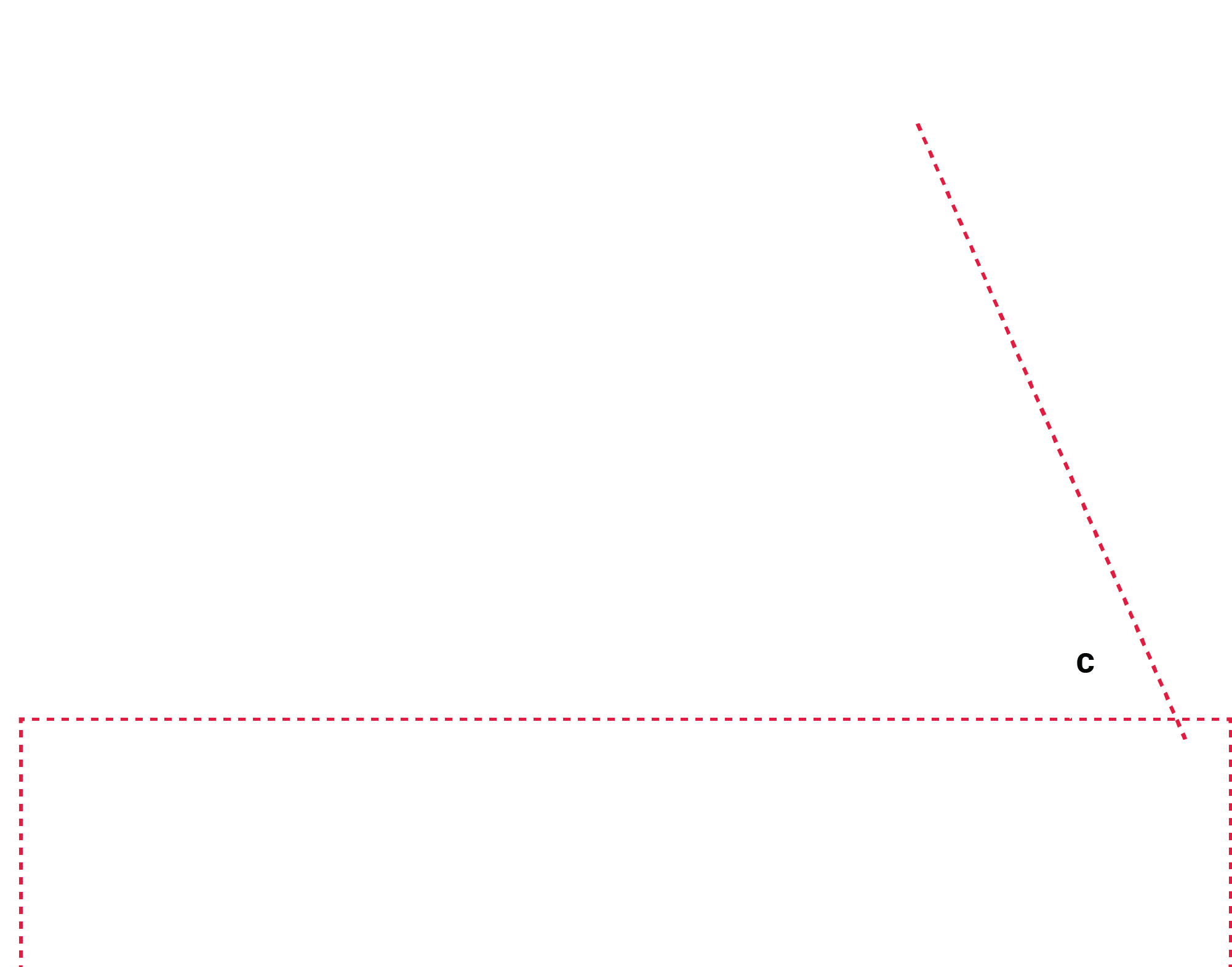

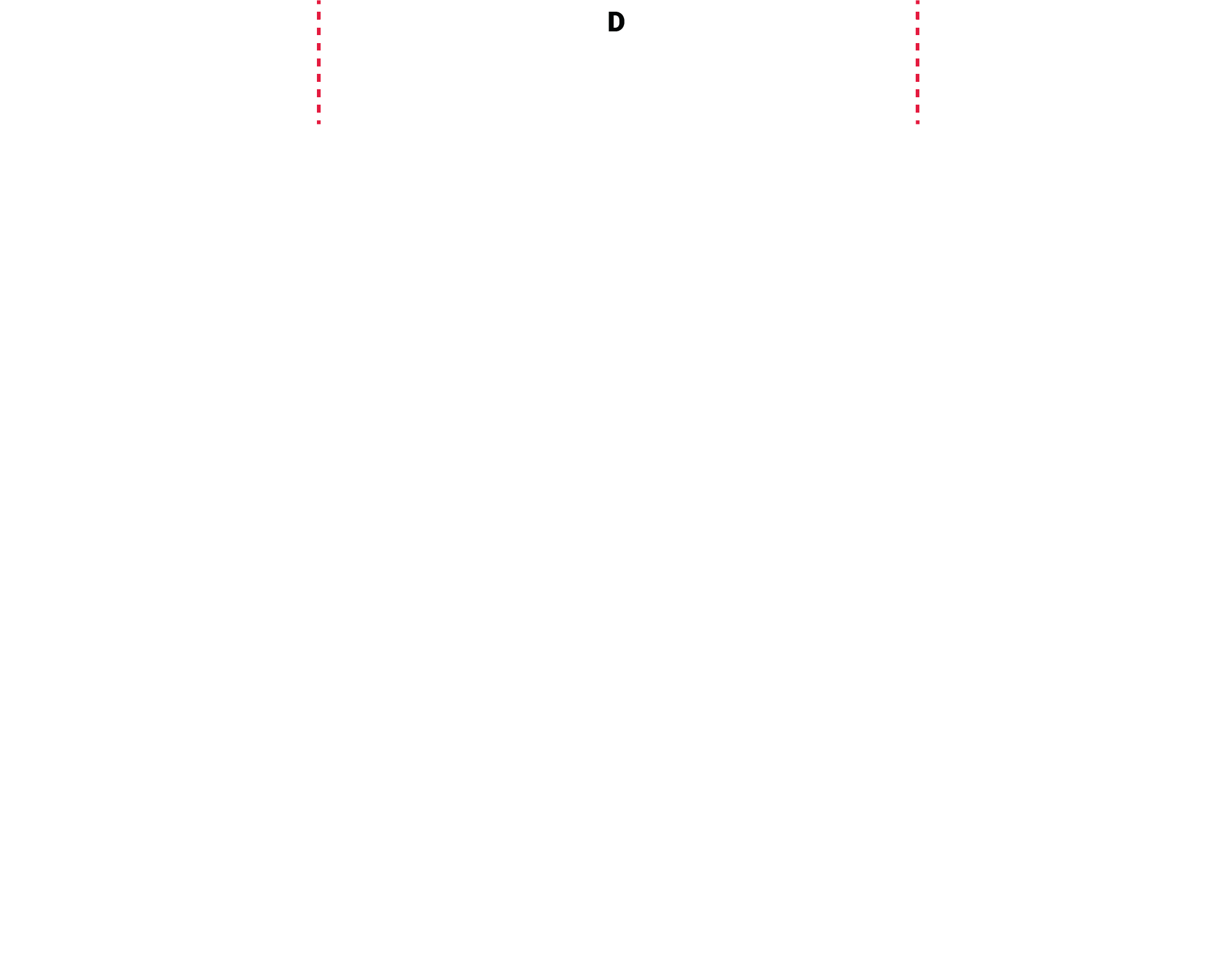

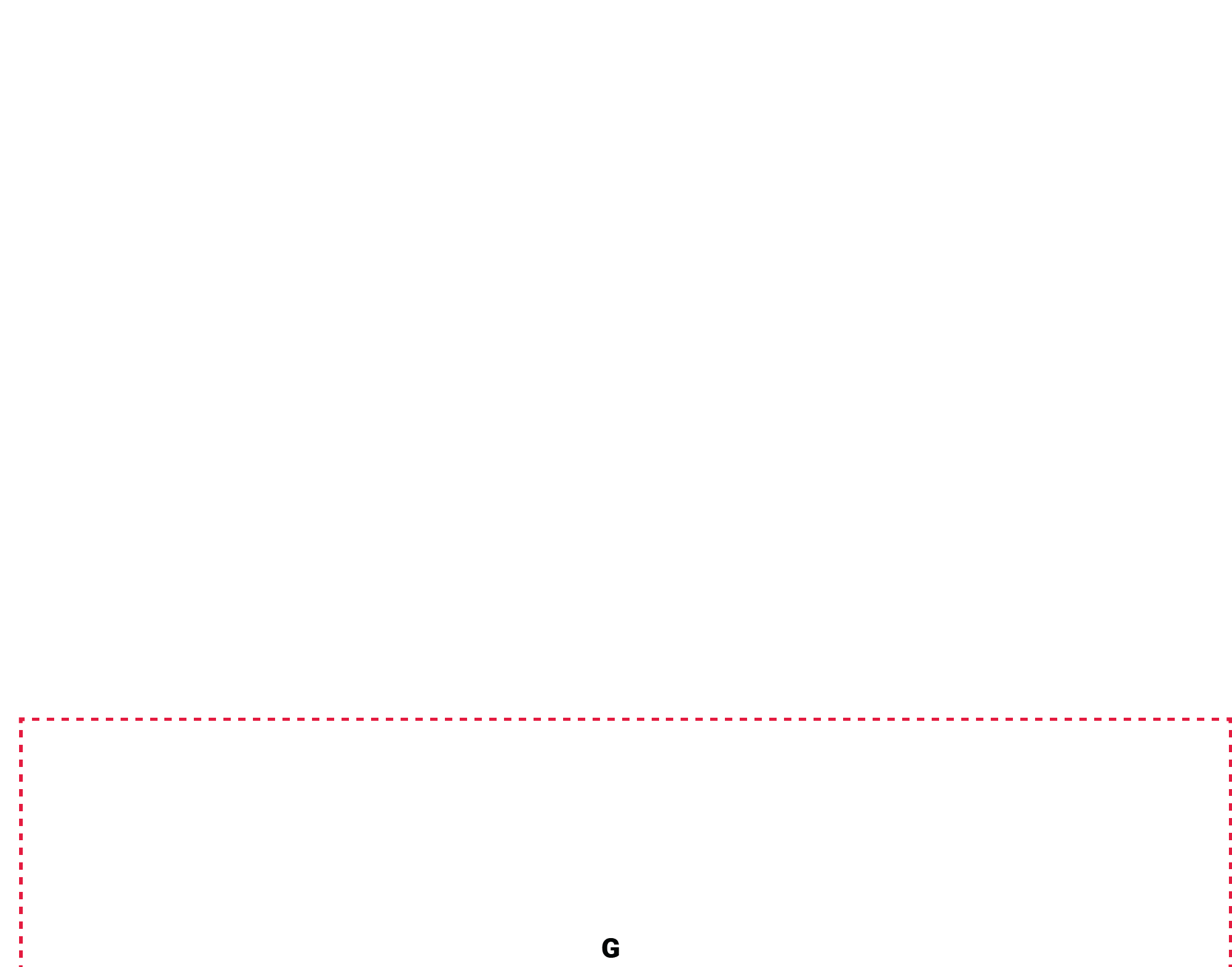

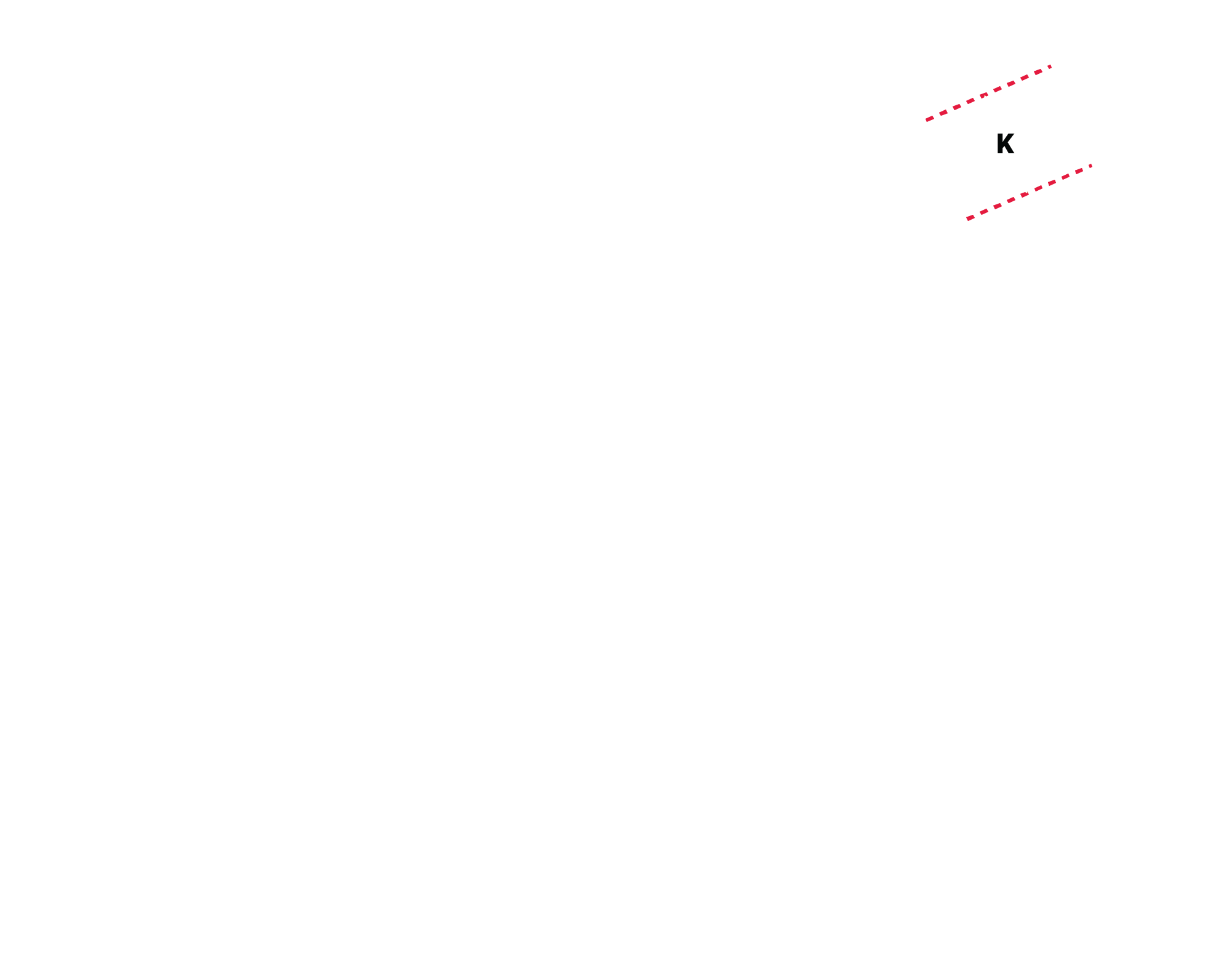

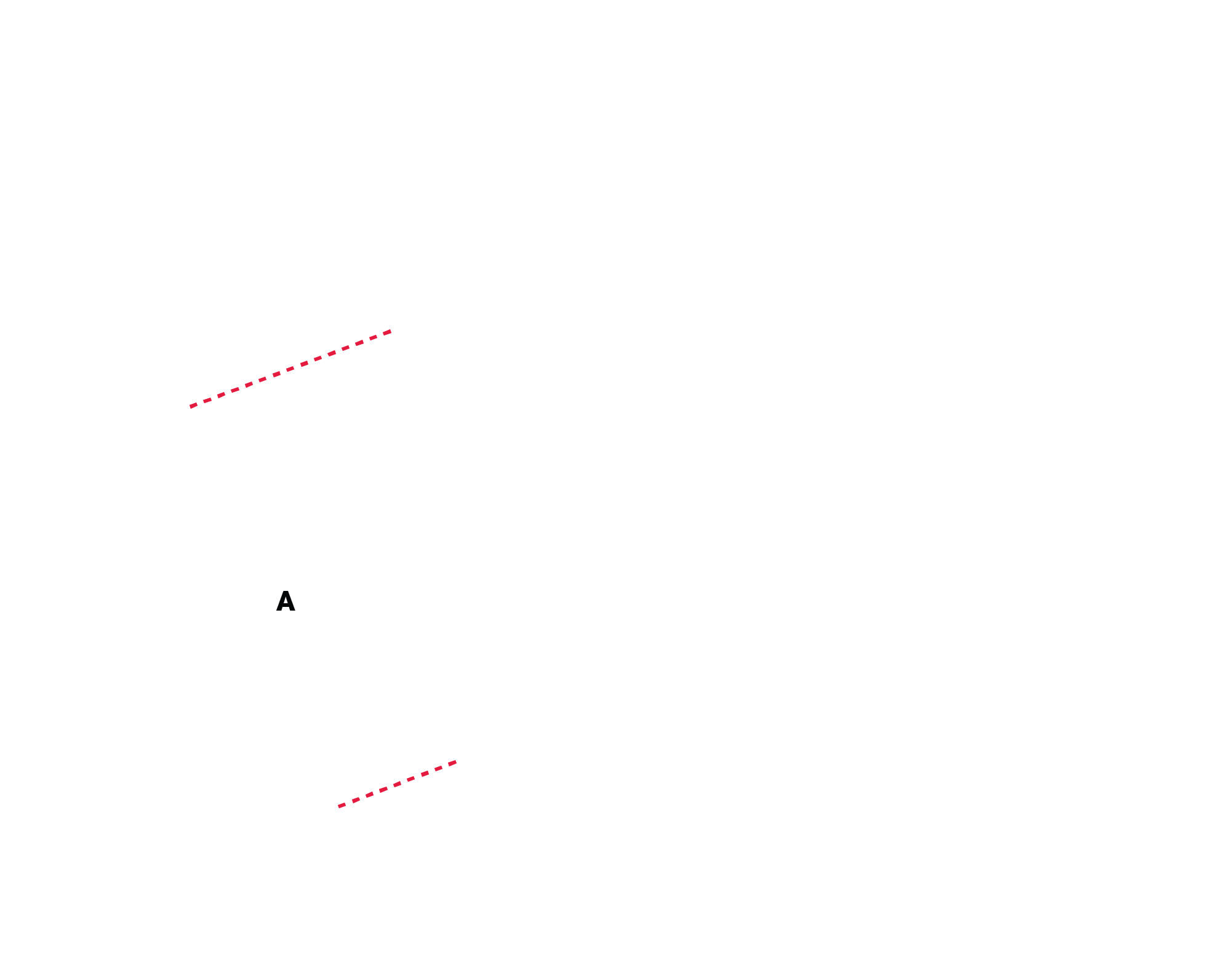

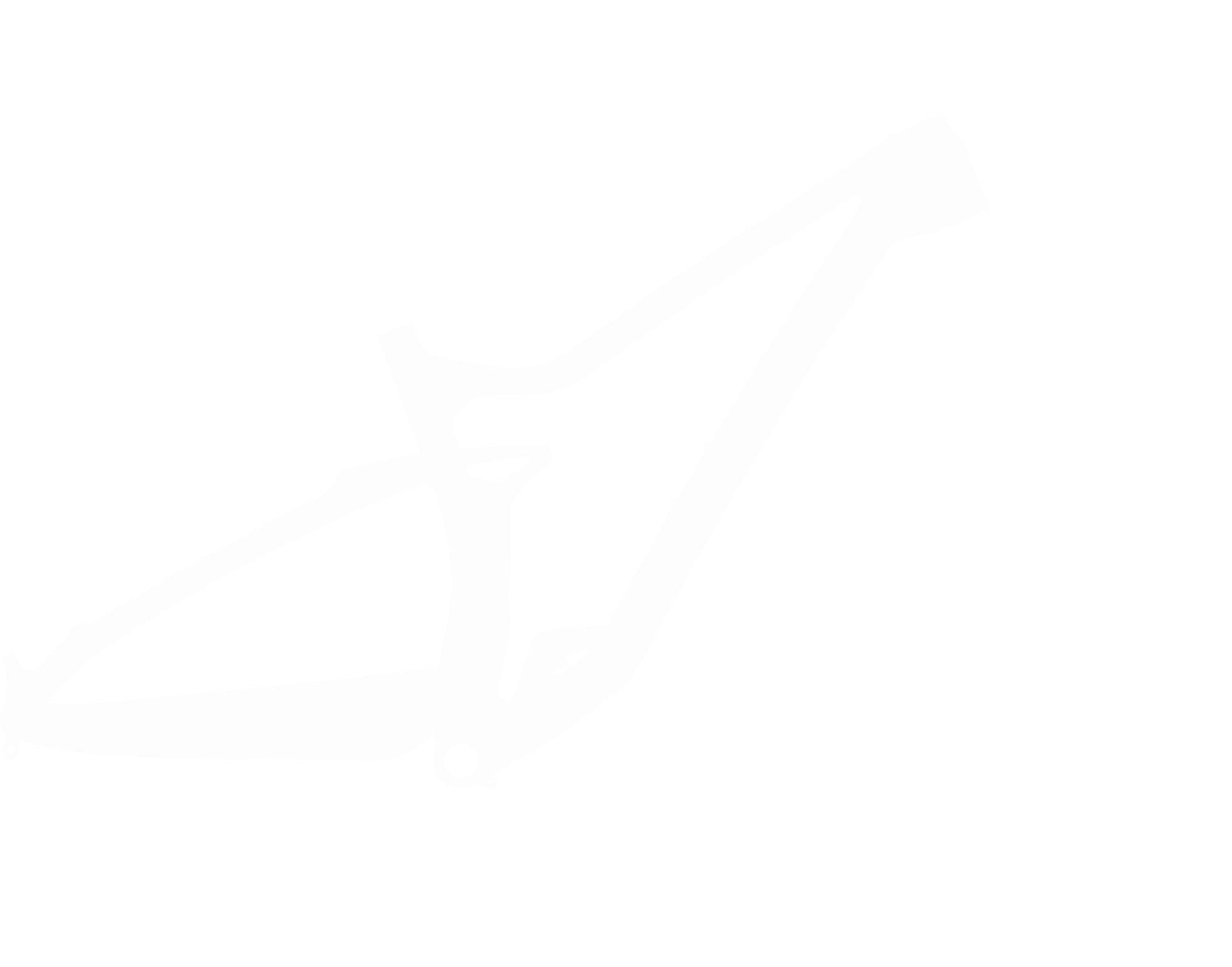

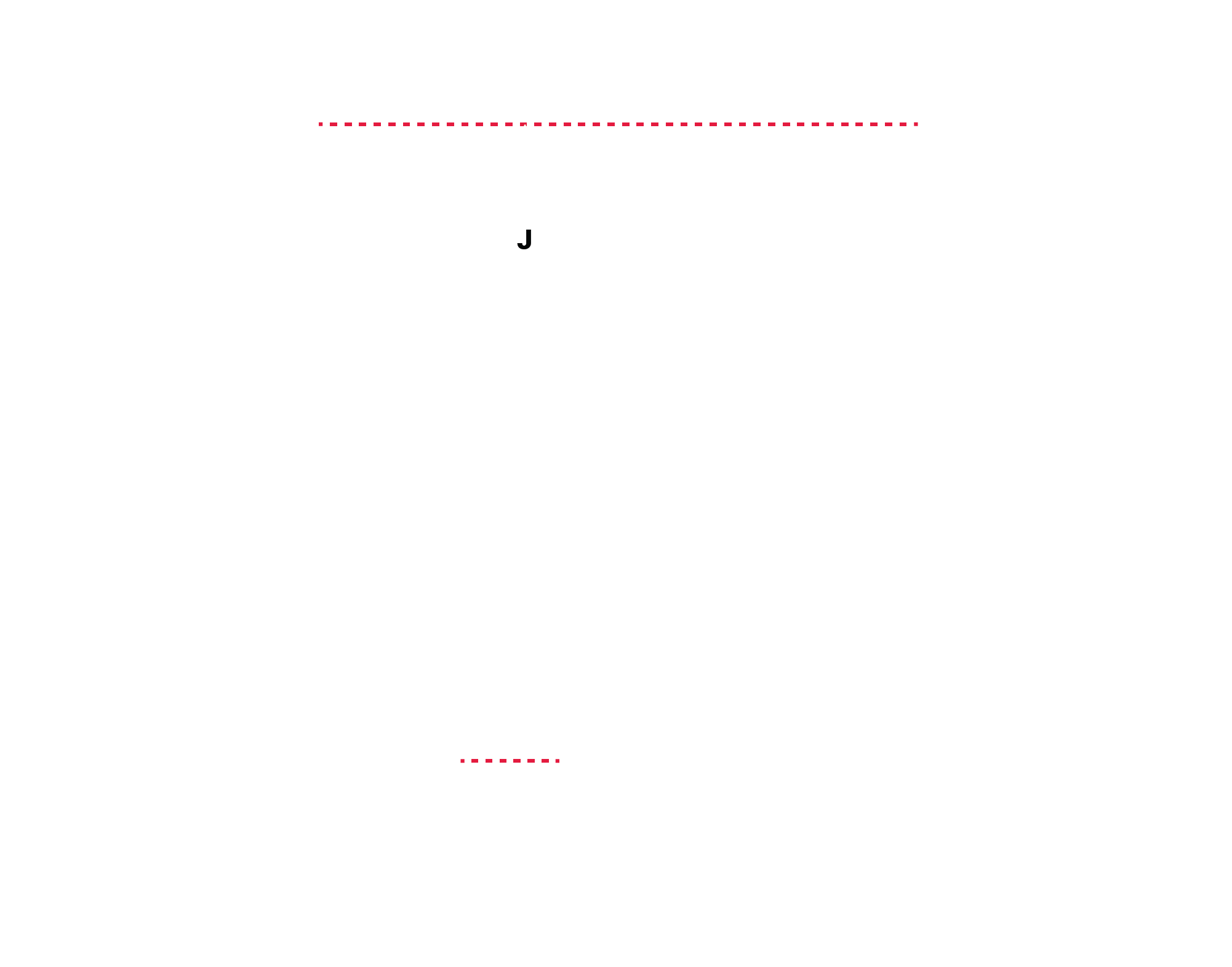

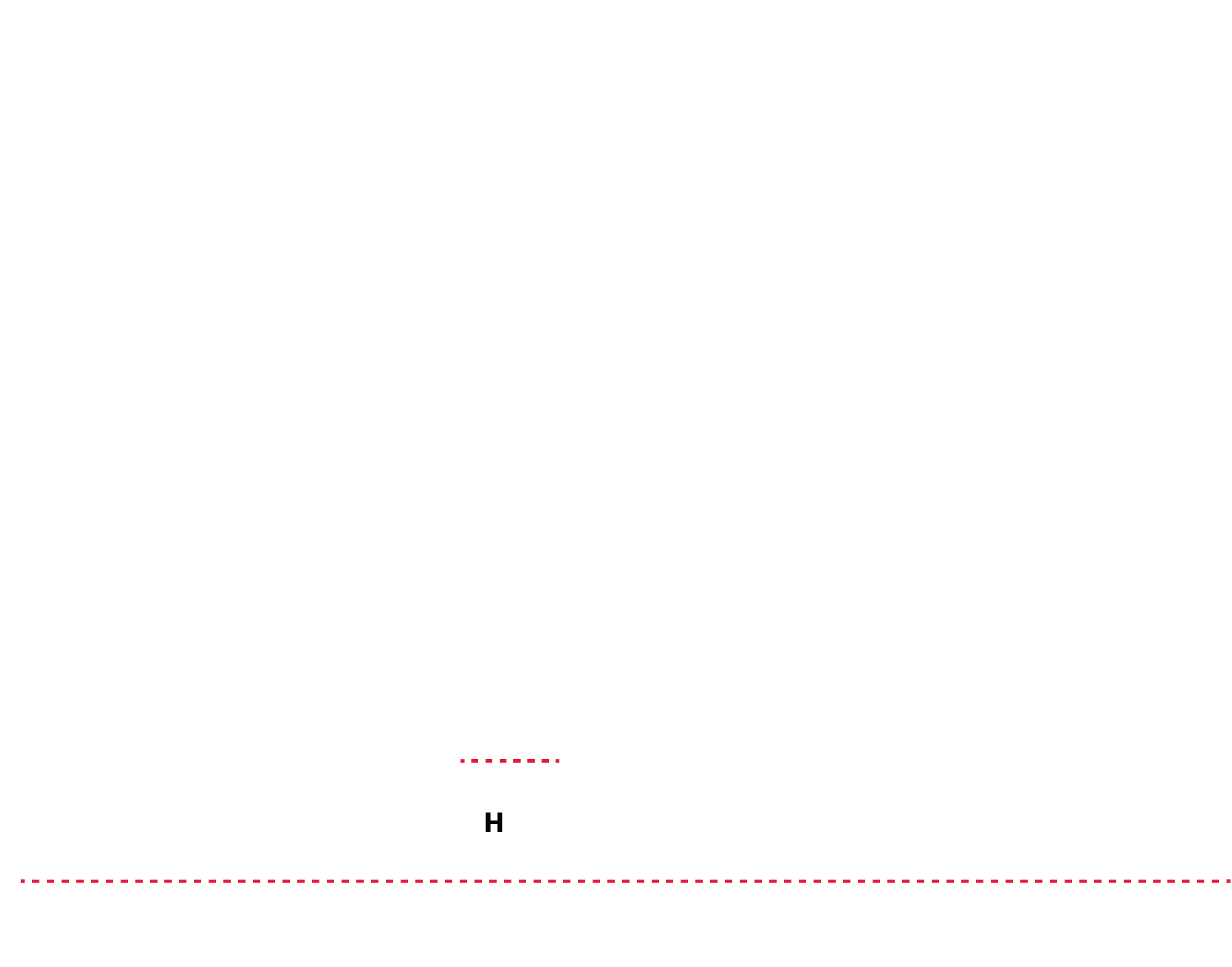

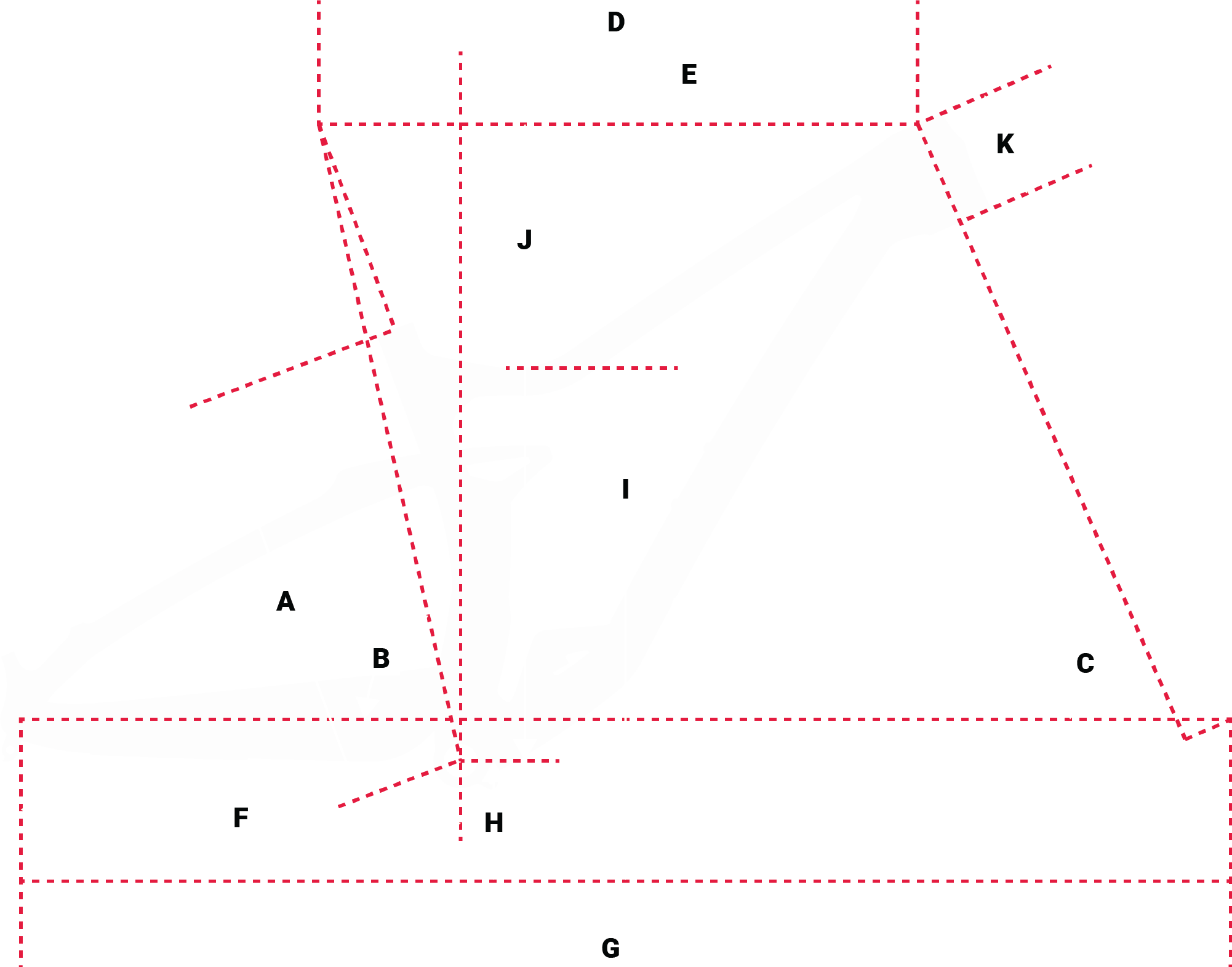

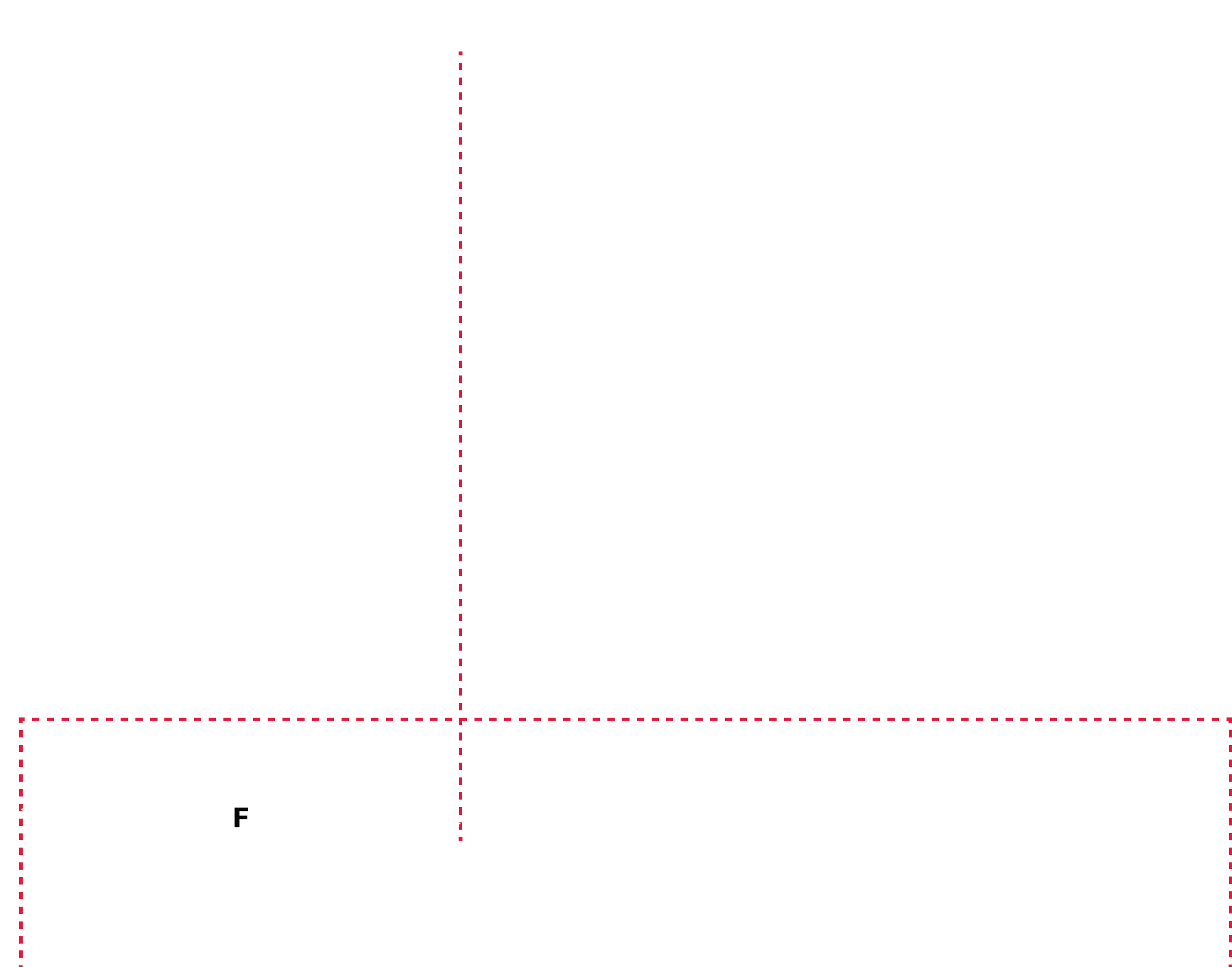

Frame &
Geometry
*THE PERFECT FIT Please note that only Devinci authorized retailers are able to advise you properly on the correct bike size. Please visit your nearest store so they can analyze your needs. In the case of internet shopping, it is equally important to provide the necessary measurements (e.g. inseam length) so that the retailer can give you the correct information.
Full range
1 bikes
Technologies
Rider optimized chainstay length
Adaptable chainstay lengths on large/XL bikes for a fully balanced feel on the trail, while rider size-appropriate front triangle enhances overall stability and handling.
435mm on XS - M
440mm on L
445mm on XL
29 x 2.6 / 27.5 x 2.8'' Maximum tire clearance
Super Boost rear spacing provides massive tire clearance at 29x2.6 for capable mud ejection plus the traction you want when trails turn slick.
Cable holder / shock washer combo
User-friendly cable holder doubles as a lower shock washer for ultra-easy reassembly.
Rear pivot brake cable clip
Rear pivot brake cable clip complements streamlined architecture and shuns frame rubbing.

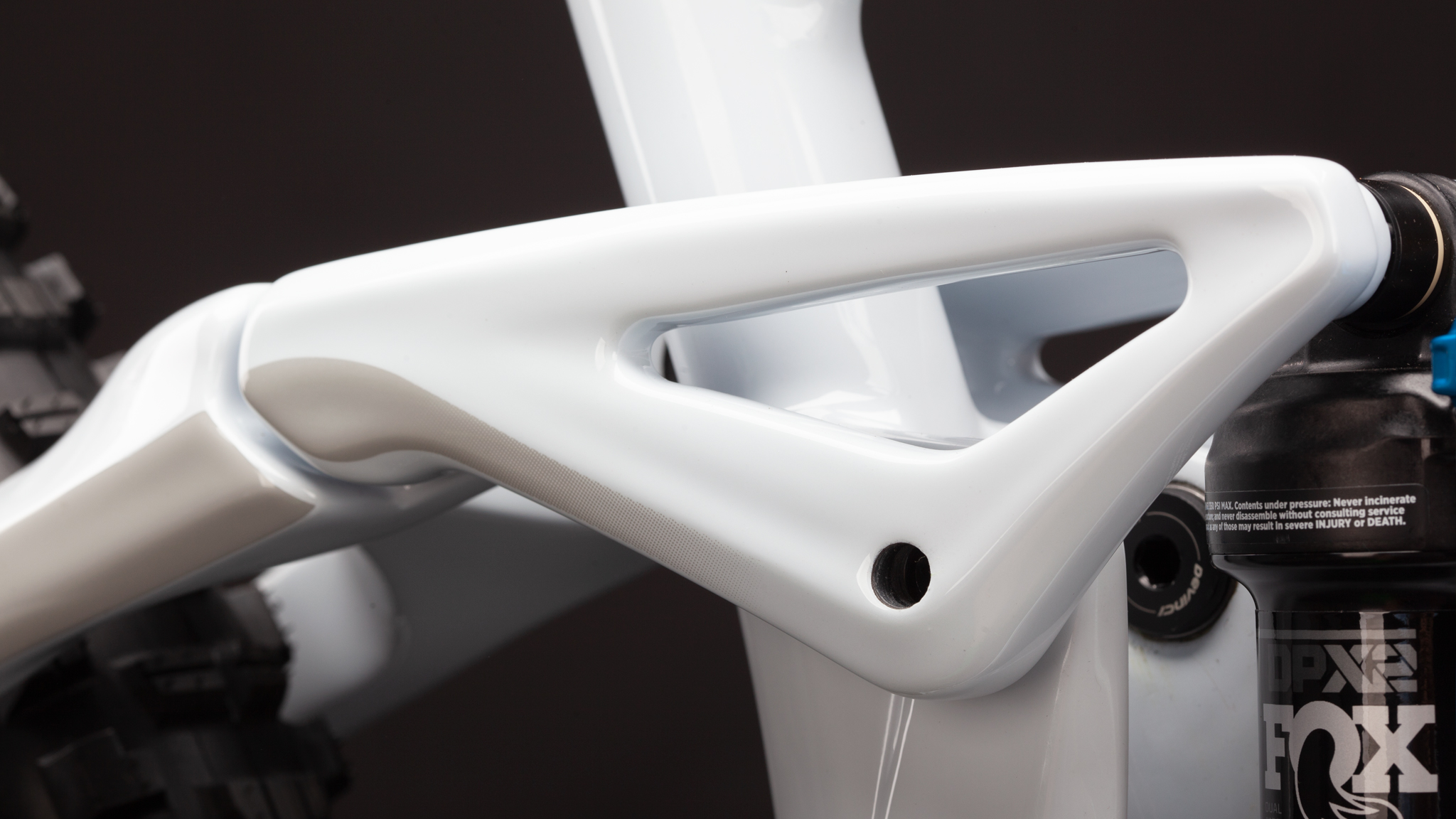

Double row bearing in linkage
Double-row, double-lip sealed bearings in linkage for precision movement and superior longevity.
2 bolts ISCG mount
Get-gnarly chain guide fortified for on-trail use and abuse.
Molded Polyurethane protector
High-density rock guard for optimal protection.
Updated Geometry
Modern trail bike geometry featuring a 10mm longer reach and 1.5 degree slacker head angle for confidently tackling technical sections, while steeper seat tube angle helps you motor up the climbs.
Light, capable frame weight/build
2,560g of trail riding muscle for lively acceleration and precision handling when trails turn to gnar.
Relocated geo adjust Flip Chip
Switch between Hi/Lo mode to customize ride characteristics. The flip chip is conveniently located at the base of the shock mount with less moving parts, meaning it's easier to use, especially if you want to conduct some on-trail experiments.
Full Carbon Frame
Lightweight, cutting-edge frame design with integrated look and featuring hidden pivots for easy maintenance with simple access to all frame parts.
Lifetime warranty
Riding passions last a lifetime. Now your bike does too.
Split Pivot
Separates acceleration forces from braking forces for a buttery smooth ride with hyperactive small bump compliance, plus increased traction and podium-crushing pedal stroke efficiency.
