E-Cartier
E-Cartier EP8 10s LTD New
US$4,399.00
Select your specs
-
Aluminum LTD
Frame
-
EP8 10s LTD
Build kit
THE DO-IT-ALL URBAN E-BIKE
The E-Cartier is part of a new wave of hard-working, fun-loving bikes. Whether you're getting around the city, commuting, or trying to take the bike instead of the car. The powerful Shimano Steps motor and straight handlebars deliver a sporty ride and reliable power. The fully integrated design means that all the key accessories, like a digital display, rack, fenders, lights, and stand, come standard – all without looking or feeling clunky. No matter where you’re headed, the E-Cartier will boost your ride.
Technical
Specifications
E-Cartier EP8 10s LTD
Manufacturing
Designed & Assembled in Canada
Frame
- FRAME Aluminum Optimum S03
- FORK Suntour Mobie 34 100mm w/Preload adjuster
- HEADSET FSA Custom
- SEAT CLAMP Alloy CNC | 34.9mm
Cockpit
- HANDLEBAR V2 Comp
- STEM TranzX I-Alloy | B:31.8mm | 70mm | 7°
- SADDLE Devinci
- SEATPOST TranzX Dropper 31.6mm 1xLever
- GRIPS Soft Comfort | Single lock
Brakes
- FRONT BRAKE Shimano Deore M4100/MT410 | 2 Pistons
- REAR BRAKE Shimano Deore M4100/MT410 | 2 Pistons
- ROTORS Shimano RT66 | 180mm
Drivetrain
- REAR DERAILLEUR Shimano Cues U6000 | 10/11s
- REAR SHIFTER Shimano Cues M6000 | 10s
- CRANKARM Shimano EM600
- CHAINRING Shimano STEPS CRET600 | 38T Single chain guard
- CASSETTE Shimano Cues 10s 11-48T
- CHAIN Shimano LG500 | 9/10/11s
Wheels
- FRONT RIM V2 Comp | 23mm inner
- FRONT HUB Formula DC-71 | Sealed | 6bolts TA 15x100mm
- REAR HUB Formula EHL-135S | Sealed | 6bolts | 10x135mm | HG
- SPOKES Stainless 14G
- FRONT TIRE Continental Ruban | Reflex | 29x2.30
- REAR TIRE Continental Ruban | Reflex | 29x2.30
E-System
- COMPUTER Shimano STEPS EN610
- DRIVE UNIT Shimano STEPS EP801 | 250W | 85Nm
- BATTERY BMZ Gen2 725Wh
Accessories
- PEDALS Wellgo C211DU
- FRONT FENDER Sunny Wheel
- REAR FENDER Sunny Wheel
- KICKSTAND Kickstand Devinci Black
Weight
0.00 kg / 0.00 lb
*For a size medium complete bike, weight approximate and subject to change.
Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.

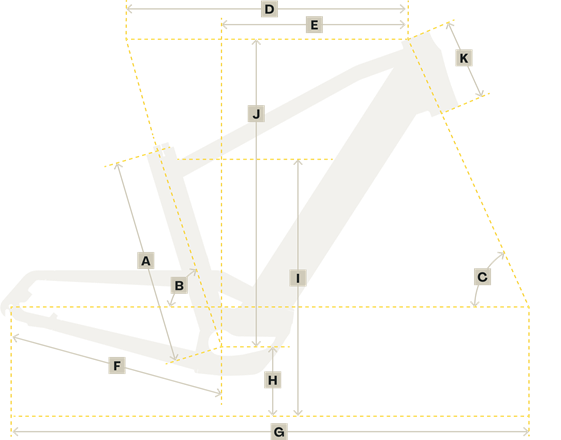

Frame &
Geometry
*THE PERFECT FIT Please note that only Devinci authorized retailers are able to advise you properly on the correct bike size. Please visit your nearest store so they can analyze your needs. In the case of internet shopping, it is equally important to provide the necessary measurements (e.g. inseam length) so that the retailer can give you the correct information.
Full range
2 bikes
Technologies
Motor
Shimano EP801 motor is the most powerful, lightweight and long-lasting powerplant in their lineup. Its optimal power transfer delivers a smooth ride for maximum fun. It’s also incredibly durable in all weather conditions thanks to its moulded protector.
INTEGRATED COCKPIT
Protects cables and electronics from the elements in a clean design. The smooth internal cable lines also provide better shifting over time compared to other integrated systems.
INTEGRATED DISPLAY
Let’s you customize the ride data you view and how you view it. Speed, distance, trip time, clock, gear, estimated range, battery indication… The choice is yours.
BATTERY
Ultra long-lasting 725 Wh battery uses the latest 21700 cell technology. It holds 30% more energy and delivers optimal performance in all weather conditions.
INTEGRATED LIGHTS
Safety on the road comes standard, so you can enjoy the ride, day or night.
FRONT SUSPENSION AND DROPPER SEATPOST
100 mm of suspension for added comfort and control, even at full speed. A dropper seatpost lets you easily put your feet on the ground when you stop.
HYDRAULIC DISC BRAKES
All weather performance.
WIDE TIRE CLEARANCE
Large volume tires will get you where you’re going with added comfort and control. Frame fits up to 29 x 2.4’’ tires.
INTEGRATED ACCESSORIES
Everything you need for a seamless ride comes standard. Hit the road with fenders, rear rack and a solid e-bike kickstand for when you’re not riding
INTEGRATED TROUSER GUARD
The lower position of the seat stay function as a chain guard and prevents your pants rubbing on the chain.
INTERNAL CABLE ROUTING
Protects cables from the elements and gives the frame a clean look.
LIFETIME WARRANTY
Riding passions last a lifetime. Now your bike does too.
