Product launch
E-Troy Lite
E-TROY LITE S1000 AXS 12s Made in Canada
US$6,599.00
Select your specs
-
ALUMINUM
Frame
-
S1000 AXS 12s
Build kit
Getting you more on every ride
Climb in a flash and descend in style with this next generation rig that combines Bosch wattage with the finesse and feel Devinci trail bikes are known for. You’ll sense the power delivered by a Bosch system that’s compatible with a range extender for longer days. More than anything, you’ll notice how subtle the difference is on the way down. An agile made-in-Canada chassis with mixed wheels and suspension kinematics brings the spirit of a Devinci trail bike to the world of power assist. The E-Troy Lite gives you more on every ride.
Technical
Specifications
E-TROY LITE S1000 AXS 12s
Manufacturing
Handcrafted in Canada
Frame
- FRAME Aluminum Optimum G04 150mm
- HEADSET FSA Orbit | 1.5 | Zero Stack
- SEAT CLAMP Alloy CNC | 34.9mm
Suspension
- SUSPENSION FORK RockShox Lyrik Select+ | Charger3.1 |RC2 | DB|160 | 44Offset
- REAR SHOCK Rockshox Super Deluxe Ultimate | 185x55 Trunnion
Cockpit
- HANDLEBAR RaceFace Turbine R35 | B:35mm | R:35mm | W:800mm
- STEM V2 Pro | B:35mm | L:40mm | 0°
- SADDLE SDG BELAIR Max eMTB
- SEATPOST SDG Tellis 31.6mm
- SEATPOST LEVER SDG Tellis | Matchmaker | 1x Lever
- GRIPS Devinci | w/lock-on
Brakes
- FRONT BRAKE SRAM Code Bronze
- REAR BRAKE SRAM Code Bronze
- FRONT ROTOR SRAM Centerline | 220mm
- ROTORS SRAM Centerline | 200mm
Drivetrain
- REAR DERAILLEUR SRAM S1000 Eagle AXS | T-Type | 12s
- REAR SHIFTER SRAM AXS POD | 12s
- CRANKARM SRAM GX Bosch | 165mm
- CHAINRING Sram XX Eagle 34T Bosch EMTB
- CASSETTE SRAM XS1270 T-TYPE | 12s | 10-52T
- CHAIN SRAM
Wheels
- FRONT RIM RaceFace AR30 29 | 30mm inner | TR
- FRONT HUB Dtswiss 370 Classic |15x110 Boost | 6bolts | 32H
- REAR HUB Dt Swiss 370 Classic | 12x148Boost
- REAR RIM RaceFace AR30 27.5 | 30mm inner
- SPOKES Sapim Stainless 14G w/Nylok
- FRONT TIRE Maxxis Assegai | 29x2.5WT | 3C | Exo+ | TR | MaxxTerra
- REAR TIRE Maxxis Minion DHR II | 27.5x2.5 | 3CT | EXO+ | TR
E-System
- COMPUTER BOSCH System controller BRC3100
- DRIVE UNIT Bosch Performance Line SX
- BATTERY Bosch CompactTube 400 | 36V | 400 Wh
Weight
0.00 kg / 0.00 lb
*For a size medium complete bike, weight approximate and subject to change.
Bike Specifications are subject to change without notice. Specifications may not be exactly as shown in photo.
BOSCH PERFORMANCE LINE SX
German engineering in a Canadian-made frame. Weighing at 4.4 lbs (2.0 kg), Bosch’s newest and lightest drive unit yet, the Performance Line SX delivers 55 Nm of torque and has a maximum power output of 600 watts. To achieve its light weight, the motor is built around a magnesium housing. The Performance Line SX utilizes Bosch’s smart system, making it compatible with their app eBike Flow and, therefore, fully tunable for the rider’s preferences.
400 Wh BATTERY
Minimal profile, seamlessly integrated, and compact – these are the defining features of the Bosch CompactTube 400 battery hiding in the E-Troy Lite. Weighing approximately 1995 grams, this energy powerhouse delivers an impressive 400 watt-hours. With the latest battery cell technology, it stands out as the Bosch eBike battery with the highest energy density.

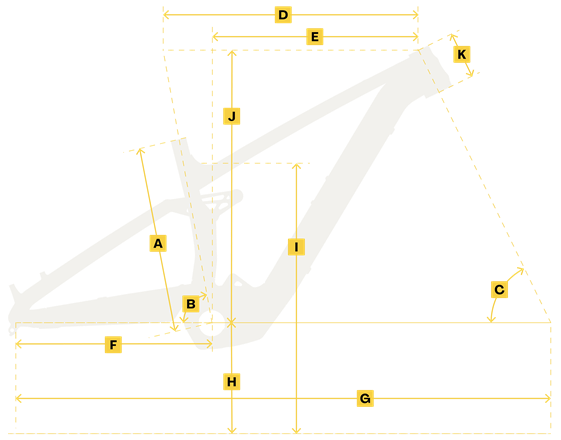

FRAME TECH SPECS
Weight Class
The E-Troy Lite GX AXS displays a weight of 19,50 kg / 42,99 lb for a medium-sized frame. It is a respectable weight that provides it with the sought-after agility and balance for an e-MTB in this category. Light yet durable – No stone has been left unturned in the selection of components. A robust Optimum G04 6061-T6 aluminum frame, along with a set of high-performance and reliable parts, complete this beast.
Adapted Geometry
With their extra weight, eBikes generally feel more composed and faster while descending rougher terrain, and with the pedal assist they can get you up steep climbs you’d never think you’d be able to get to the top of. In short, e-MTB’s are generally faster. That’s why Devinci adapts the geometry of its e-MTB’s for the realities of e-Mountain biking. While maintaining similar reach numbers, e-MTB’s get a slightly slacker head angle for extra confidence while tackling demanding trail sections. The seat tube angle is steepened to help position the rider's body more towards the front of the bike, thus aiding in maintaining that extra speed and momentum while climbing.
Full range
6 bikes
UP TO 67 KM ON A SINGLE CHARGE
RANGE
A full charge will get you approximately 2 hours of riding, 1000 meters of climbing, and an average range of 40 km. Using mainly the ECO mode, the battery will deliver up to 67 km of range. Using primarily the TURBO mode, the system will provide a range of approximately 28 kilometers. The average speed, the assist mode, the weather, the wind, the rider's weight, and the frequency of stops are all factors that play a role in the energy consumption of the battery. For a more accurate estimate of the available range, use the Bosch Range Assistant.
The different riding modes
MODES
The Bosch system of the E-Troy Lite is programmed with the following assist modes: ECO, TOUR+, eMTB, and TURBO.
ECO: Low level support with maximum efficiency for the greatest range.
TOUR+: Smooth incremental support for energy-saving riding and a natural riding experience for longer rides.
eMTB: Providing targeted support for eMTB riding and delivering power exactly when it's needed for an optimal ride experience.
TURBO: Maximum power support even at high cadences on steep climbs.
Technologies
MADE IN CANADA ALUMINUM FRAME
Made from 6061-T6 aluminum tubes for superior durability, incredible stiffness and a knockout strength-to-weight ratio exclusive to Devinci bikes.
BOSCH MOTOR
Bosch’s newest and lightest drive unit yet, the Performance Line SX delivers 55 Nm of torque and has a maximum power output of 600 watts.
E-MTB OPTIMIZED SPLIT PIVOT
Separates acceleration forces from braking forces for a buttery smooth ride complemented by hyperactive small-bump compliance. Additionally, optimized kinematics keeps the e-bike suspension active, even when accelerating, for added torque and improved overall traction.

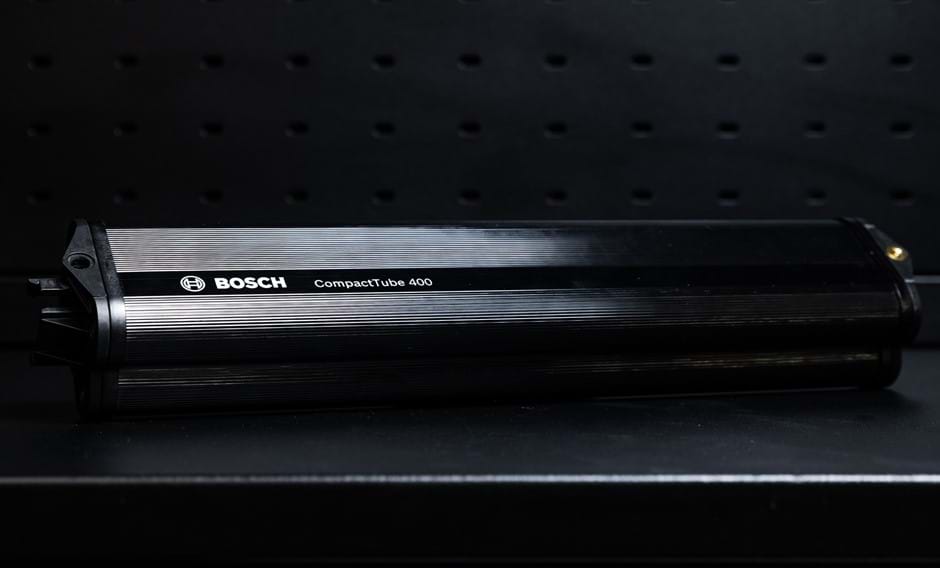

COMPACTTUBE 400 BATTERY FROM BOSCH
A light and efficient 400Wh battery holds 30% more energy thanks to the 21700 cell technology. Its rugged design is purpose-built for the rigours of mountain biking.
BOSCH SYSTEM CONTROLLER
The System Controller is the control unit for eBikes with Bosch's smart system. It is seamlessly integrated into the top tube.
MODERN GEOMETRY
Modern trail bike geometry featuring a slacker head angle for confidently tackling technical sections, while the steeper seat tube angle helps you master any climb.
DEDICATED MIXED-WHEEL SIZE DESIGN
Get all the snappy handling of 27.5" with the added traction, rollover and momentum of a 29" wheel up front.
LIFETIME WARRANTY
The love of riding lasts a lifetime. Now your bike can too.
INTERNAL CABLE ROUTING
The overall aesthetics of the chassis are kept clean and discreet.
STANDARD BOOST 148
Boost 148 design with a 55 mm chainline that offers ample tire clearance.
UNIVERSAL DERAILLEUR HANGER
Reduces the risk of destroying your derailleur and makes it easy to source replacement parts when you need them.
MOTOR SHIELD
Integrated nylon motor shield protects the motor from impacts and debris. The shield also has vents to help dissipate heat and let water drain.
INTEGRATED BATTERY
The battery is tucked inside the downtube, away from rocks and debris. This keeps your battery safe and shaves roughly 400g off the bike’s overall weight.

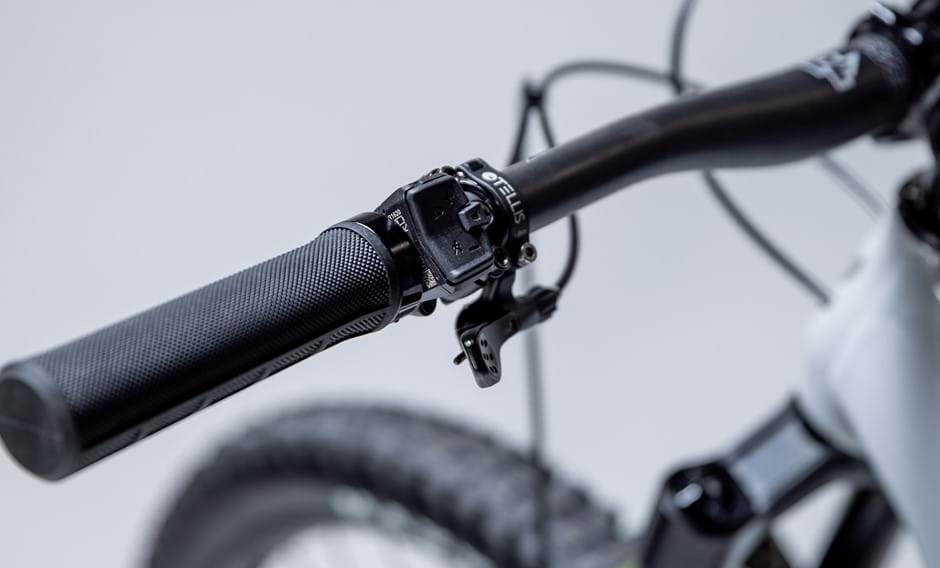

WIRELESS CONTROLER
The thumb-actuated mini remote lets you adjust power settings without changing your hand position.
DROPOUT SPEED SENSOR
Clean, streamlined solution to clunky, outdated spoke magnets, with internalized cable routing for less rattle.

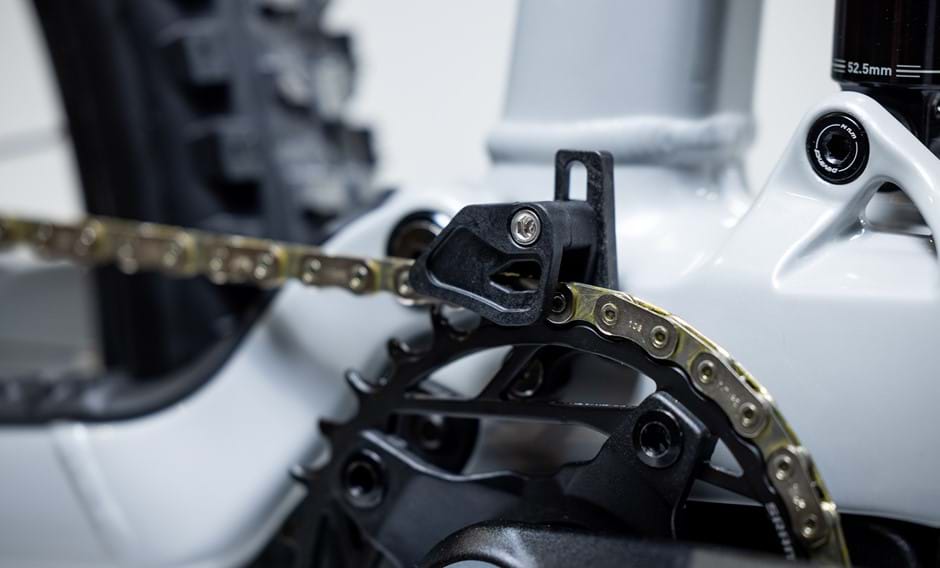

CHAINGUIDE-EQUIPPED
A discreet upper guide that keeps your chain in place.
FRAME PROTECTORS
The chainstay and the lower part of the downtube are protected to enhance durability of the frame for the rugged ride ahead.
27.5 X 2.6 MAXIMUM TIRE CLEARANCE
27.5 x 2.6
31.6 mm SEAT POST
Max insertion length:
S: 240 mm | M: 270 mm | L: 300 mm | XL: 340 mm
ENDURO™ BEARINGS
Enduro™ double-lip sealed bearings for precision movement and superior longevity.
ROOM FOR A BOTTLE
All frame sizes have clearance for at least a 500 ml bottle with a rear shock with a reservoir.
BOSCH POWERMORE 250
250 Wh portable energy reserve : PowerMore 250 is the additional battery which is about the same size as a water bottle for even more range and longer-lasting trail fun.
4A CHARGER
Bosch’s fastest charger. Provides a 50% charge in 1.5 h and a full charge in 3.5 h.
FRAME-MOUNTED CHARGING PORT
Recharge easily and efficiently with the frame-mounted charge port.
CONNECTIVITY THROUGH BOSCH EBIKE FLOW APP
Bosch offers connectivity and customized riding experience through the eBike Flow App. Itinerary planning, personalize your riding modes, track your activity, synchronize your Strava, update your software… All at the tip of your fingers.
